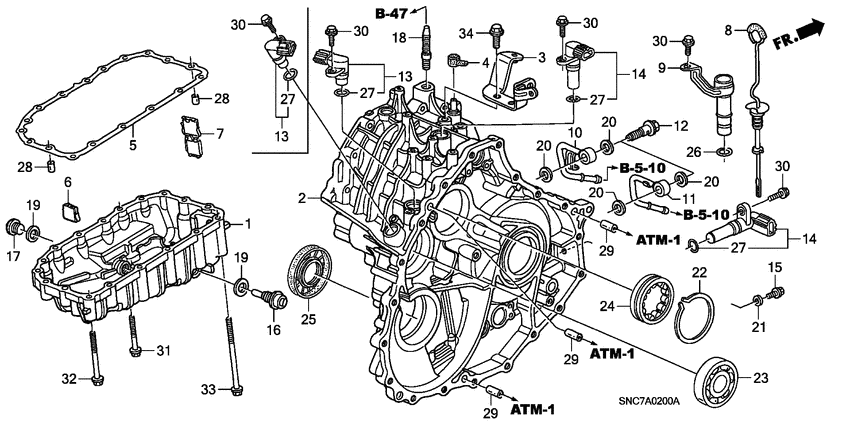

Transmission case Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX
- area code
- KG
- left-hand drive
- +
- leather seat
- +
- corner sensor
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21151-RPS-000 PanOIL |
21151-RPS-000 |
US $120.96 |
||
|
2
|
2
21210-RBL-000 Case comp.TRANSMISSION |
21210-RBL-000 |
US $584.96 |
||
|
3
|
3
21232-RPS-000 Hanger comp.TRANSMISSION |
21232-RPS-000 |
US $11.34 |
||
|
4
|
4
21396-P20-000 CapBREATHER |
21396-P20-000 |
from US $3.18 |
||
|
5
|
5
21814-RPS-000 Packing, Oil Pan |
21814-RPS-000 |
US $14.33 |
||
|
6
|
6
25422-PN6-801 Magnet comp.TRANSMISSION |
25422-PN6-801 |
US $7 |
||
|
7
|
7
25422-PY8-J11 Magnet comp.TRANSMISSION |
25422-PY8-J11 |
US $9.24 |
||
|
8
|
8
25610-RPS-E01 Gauge comp.ATF |
25610-RPS-E01 |
US $12.46 |
||
|
9
|
9
25613-RPS-000 Pipe compATF GAUGE |
25613-RPS-000 |
US $15.87 |
||
|
10
|
10
25910-RPS-000 Pipe comp. aATF |
25910-RPS-000 |
US $13.57 |
||
|
11
|
11
25920-RPS-000 Pipe comp. bATF |
25920-RPS-000 |
US $13.57 |
||
|
12
|
12
25951-RGR-000 BoltJOINT |
25951-RGR-000 |
US $5.32 |
||
|
13
|
13
28810-PCJ-014 Pick up assy.MATSUSHITA |
28810-PCJ-014 |
US $51.58 |
||
|
14
|
14
28810-P7W-004 Pick up assy.MATSUSHITA |
28810-P7W-004 |
US $80 |
||
|
15
|
15
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
16
|
16
90081-PX4-003 BoltPLUG, 18MM |
90081-PX4-003 |
from US $5.54 |
||
|
17
|
17
90083-PZC-000 BoltSEALING, 18MM |
90083-PZC-000 |
US $4.90 |
||
|
18
|
18
90380-S04-000 BoltSTUD, 12X73 |
90380-S04-000 |
US $4.20 |
||
|
19
|
19
90471-PX4-000 WasherDRAIN PLUG, 18MM |
90471-PX4-000 |
from US $1.58 |
||
|
20
|
20
90471-RGR-000 WasherDRAIN PLUG, 12MM |
90471-RGR-000 |
US $1.57 |
||
|
21
|
21
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
22
|
22
90608-P4V-000 CirclipEXTERNAL (73) |
90608-P4V-000 |
US $2.59 |
||
|
23
|
23
91006-PX4-003 BearingBALL, 63/32-27 |
91006-PX4-003 |
from US $19.45 |
||
|
24
|
24
91101-RTY-003 BearingNEEDLE, 44X73X17.5 |
91101-RTY-003 |
US $30.72 |
||
|
25
|
25
91205-PWR-003 Oil seal35X76X8 |
91205-PWR-003 |
from US $10.42 |
||
|
26
|
26
91308-PH0-013 O-ring17.8X1.9 (NOK) |
91308-PH0-013 |
US $1.55 |
||
|
27
|
27
91309-PX4-003 O-ring16X2.1 (NOK) |
91309-PX4-003 |
from US $1.92 |
||
|
28
|
28
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
29
|
29
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
30
|
30
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
31
|
31
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
32
|
32
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
33
|
33
95701-060-700-8 BoltFLANGE, 6X70 |
95701-060-700-8 |
from US $0.81 |
||
|
34
|
34
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
