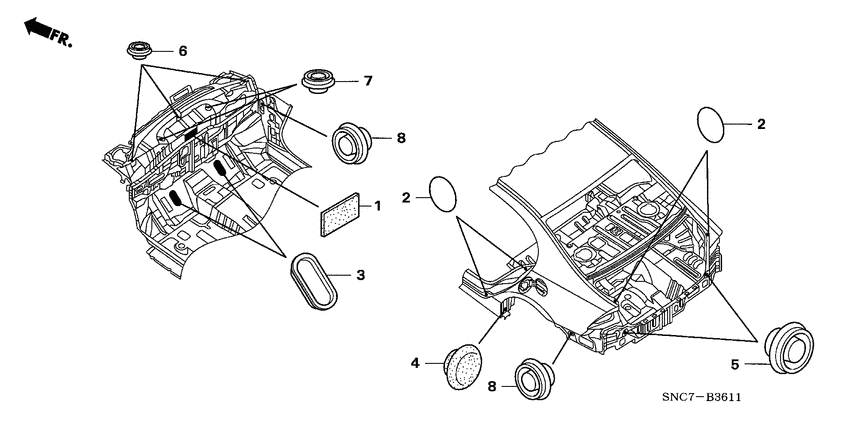

Grommet (REAR) Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX DAYTIME LI
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74241-SNA-A00 InsulatorDASHBOARD UPPER CENTER |
74241-SNA-A00 |
US $4.62 |
||
|
2
|
2
85268-SA0-000 ProtectionTAILGATE, 20MM (CIRCLE) |
85268-SA0-000 |
from US $1.63 |
||
|
3
|
3
90857-SNA-A00 CapWELD HOLE |
90857-SNA-A00 |
US $2.59 |
||
|
4
|
4
91603-SK7-000 GrommetWAX HOLE, 25MM |
91603-SK7-000 |
from US $2.29 |
||
|
5
|
5
91610-SD4-000 PlugHOLE, 28MM |
91610-SD4-000 |
US $1.82 |
||
|
6
|
6
95550-07000 PlugBLIND, 7MM |
95550-07000 |
from US $1.04 |
||
|
7
|
7
95550-12000 PlugBLIND, 12MM |
95550-12000 |
US $1.55 |
||
|
8
|
8
95551-20000 PlugBLIND, 20MM |
95551-20000 |
from US $1.55 |
