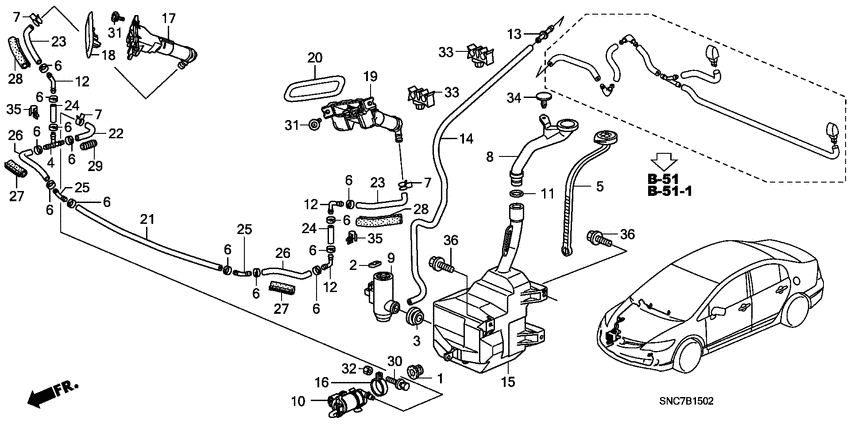

Windshield washer/ headlight washer (3) Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX DAYTIME LI
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38514-692-731 Bush |
38514-692-731 |
from US $3.26 |
||
|
2
|
2
38516-SA5-671 PackingT-TYPE) (MITSUBA |
38516-SA5-671 |
US $2.60 |
||
|
3
|
3
38519-SB0-003 BushWASHER TANK (MITSUBA) |
38519-SB0-003 |
from US $2.97 |
||
|
4
|
4
38581-671-631 JointTUBE |
38581-671-631 |
US $7.28 |
||
|
5
|
5
76802-SJD-003 Cap unitMOUTH |
76802-SJD-003 |
from US $5.45 |
||
|
6
|
6
76803-SH2-S10 ClipWASHER HOSE |
76803-SH2-S10 |
US $2.38 |
||
|
7
|
7
76803-TA1-M01 ClipWASHER HOSE |
76803-TA1-M01 |
US $1.82 |
||
|
8
|
8
76805-SNA-003 HoseWASHER |
76805-SNA-003 |
from US $7.13 |
||
|
9
|
9
76806-SL0-E11 MotorWASHER (HIGH) (MITSUBA) |
76806-SL0-E11 |
from US $37.54 |
||
|
10
|
10
76806-SNB-S01 PumpWASHER |
76806-SNB-S01 |
US $157.08 |
||
|
11
|
11
76809-S9A-003 Packing |
76809-S9A-003 |
from US $0.83 |
||
|
12
|
12
76828-SH3-S03 Joint l |
76828-SH3-S03 |
US $2.45 |
||
|
13
|
13
76829-SM4-003 Joint iWASHER |
76829-SM4-003 |
US $3.57 |
||
|
14
|
14
76838-SNB-S01
Tube
|
76838-SNB-S01 |
— | ||
|
15
|
15
76840-SNB-S02 Tank setWASHER (5.8L) (HEADLIGHT WASHER) |
76840-SNB-S02 |
US $141.93 |
||
|
16
|
16
76845-SJD-S01 BracketWASHER MOTOR |
76845-SJD-S01 |
US $9.28 |
||
|
17
|
17
76880-SNB-S11 Nozzle assy.R. HEADLIGHT WASHER |
76880-SNB-S11 |
US $185.60 |
||
|
18
|
18
76881-SNB-S11ZG Case assy.R. HEADLIGHT WASHER NOZZLE *NH737M* |
76881-SNB-S11ZG |
US $49.92 |
||
|
18
|
18
76881-SNB-S11ZB Case assy.R. HEADLIGHT WASHER NOZZLE *B537M* |
76881-SNB-S11ZB |
US $49.92 |
||
|
18
|
18
76881-SNB-S11ZC Case assy.R. HEADLIGHT WASHER NOZZLE *NH578* |
76881-SNB-S11ZC |
US $49.92 |
||
|
18
|
18
76881-SNB-S11ZD Case assy.R. HEADLIGHT WASHER NOZZLE *NH624P* |
76881-SNB-S11ZD |
US $49.92 |
||
|
18
|
18
76881-SNB-S11ZK Case assy.R. HEADLIGHT WASHER NOZZLE *YR578M* |
76881-SNB-S11ZK |
US $49.92 |
||
|
18
|
18
76881-SNB-S11ZE Case assy.R. HEADLIGHT WASHER NOZZLE *NH700M* |
76881-SNB-S11ZE |
US $49.92 |
||
|
18
|
18
76881-SNB-S11ZF Case assy.R. HEADLIGHT WASHER NOZZLE *NH731P* |
76881-SNB-S11ZF |
US $49.92 |
||
|
19
|
19
76885-SNB-S11 Nozzle assy.L. HEADLIGHT WASHER |
76885-SNB-S11 |
US $185.60 |
||
|
20
|
20
76886-SNB-S11ZG Case assy.L. HEADLIGHT WASHER NOZZLE *NH737M* |
76886-SNB-S11ZG |
US $54.91 |
||
|
20
|
20
76886-SNB-S11ZB Case assy.L. HEADLIGHT WASHER NOZZLE *B537M* |
76886-SNB-S11ZB |
US $54.91 |
||
|
20
|
20
76886-SNB-S11ZC Case assy.L. HEADLIGHT WASHER NOZZLE *NH578* |
76886-SNB-S11ZC |
US $54.91 |
||
|
20
|
20
76886-SNB-S11ZD Case assy.L. HEADLIGHT WASHER NOZZLE *NH624P* |
76886-SNB-S11ZD |
US $54.91 |
||
|
20
|
20
76886-SNB-S11ZK Case assy.L. HEADLIGHT WASHER NOZZLE *YR578M* |
76886-SNB-S11ZK |
US $54.91 |
||
|
20
|
20
76886-SNB-S11ZE Case assy.L. HEADLIGHT WASHER NOZZLE *NH700M* |
76886-SNB-S11ZE |
US $54.91 |
||
|
20
|
20
76886-SNB-S11ZF Case assy.L. HEADLIGHT WASHER NOZZLE *NH731P* |
76886-SNB-S11ZF |
US $54.91 |
||
|
21
|
21
76892-SNB-S11 Hose |
76892-SNB-S11 |
US $14.34 |
||
|
22
|
22
76893-SH3-S00 Hose c |
76893-SH3-S00 |
US $4.20 |
||
|
23
|
23
76893-SL0-G03 Hose c |
76893-SL0-G03 |
US $21.25 |
||
|
24
|
24
76893-SNB-S11 Hose |
76893-SNB-S11 |
US $5.04 |
||
|
25
|
25
76894-SNB-S11 Joint |
76894-SNB-S11 |
US $3.78 |
||
|
26
|
26
76894-S04-S03 Hose d |
76894-S04-S03 |
US $10.92 |
||
|
27
|
27
76896-SNB-S11 Cushion |
76896-SNB-S11 |
US $6.44 |
||
|
28
|
28
76897-SEA-S01 Cushion |
76897-SEA-S01 |
US $7.28 |
||
|
29
|
29
76898-SNB-S11 Protector |
76898-SNB-S11 |
US $7.28 |
||
|
30
|
30
90118-SEA-S01 Bolt-washer6X20 |
90118-SEA-S01 |
US $1.33 |
||
|
31
|
31
90132-SEA-003 ScrewPAN, 5X12 |
90132-SEA-003 |
US $4.50 |
||
|
32
|
32
90316-SM5-G03 NutHEX., 6MM |
90316-SM5-G03 |
US $1.12 |
||
|
33
|
33
90691-SNA-003 ClipOPENER CABLE & WASHER TUBE |
90691-SNA-003 |
US $2.31 |
||
|
34
|
34
91501-SNA-003 ClipFR. COWL |
91501-SNA-003 |
from US $2.07 |
||
|
35
|
35
91561-S7A-003 ClipHEADLIGHT WASHER HOSE |
91561-S7A-003 |
US $3.78 |
||
|
36
|
36
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
