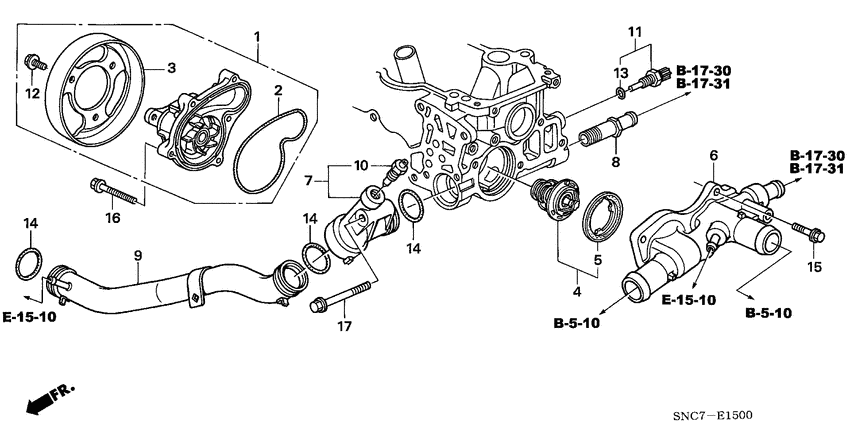

Water pump Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MXB
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-RMX-003 Pump assy.WATER |
19200-RMX-003 |
US $251.60 |
||
|
2
|
2
19222-PZA-003 PackingWATER PUMP |
19222-PZA-003 |
US $3.64 |
||
|
3
|
3
19224-PZA-003 PulleyWATER PUMP |
19224-PZA-003 |
US $25.22 |
||
|
4
|
4
19301-RMX-307 Thermostat assy. |
19301-RMX-307 |
US $40.12 |
||
|
5
|
5
19305-PLC-A00 RubberTHERMOSTAT MOUNTING |
19305-PLC-A00 |
from US $3.37 |
||
|
6
|
6
19315-RMX-000 Cover comp.WATER OUTLET |
19315-RMX-000 |
US $53.38 |
||
|
7
|
7
19316-RMX-000 Joint assy.WATER |
19316-RMX-000 |
US $36.86 |
||
|
8
|
8
19500-PNA-000 JointTUBE |
19500-PNA-000 |
US $5.60 |
||
|
9
|
9
19505-RMX-000 Pipe compCONNECTING |
19505-RMX-000 |
US $41.86 |
||
|
10
|
10
19516-PC1-000 BoltBREATHING WATER |
19516-PC1-000 |
from US $5.62 |
||
|
11
|
11
37870-PLC-004 Sensor assy, WATER TEMP (MATSUSHITA) |
37870-PLC-004 |
from US $40.79 |
||
|
12
|
12
90013-RMX-000 BoltSPECIAL, 6X12 |
90013-RMX-000 |
US $3.78 |
||
|
13
|
13
91307-PLC-004 O-ring9.5X1.9 (MATSUSHITA) |
91307-PLC-004 |
from US $1.63 |
||
|
14
|
14
91314-634-000 O-ring |
91314-634-000 |
from US $2.86 |
||
|
15
|
15
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
16
|
16
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
17
|
17
95701-060-500-8 BoltFLANGE, 6X50 |
95701-060-500-8 |
from US $0.74 |
