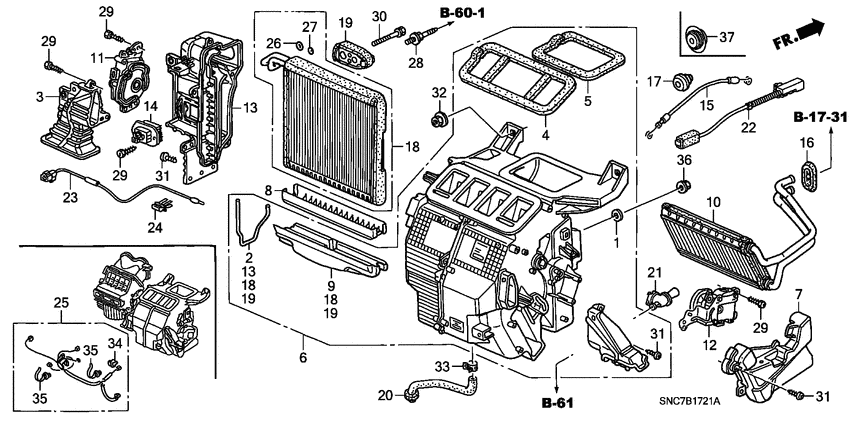

Heater unit (RH) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX ALCANT
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39248-692-003 PackingHEATER |
39248-692-003 |
US $1.54 |
||
|
2
|
2
79021-SNA-A01 Seal a |
79021-SNA-A01 |
US $1.89 |
||
|
3
|
3
79102-SNB-003 Duct assyPASSENGER HEATER |
79102-SNB-003 |
US $14.34 |
||
|
4
|
4
79103-SNA-A01 Packing set |
79103-SNA-A01 |
US $5.46 |
||
|
5
|
5
79104-SNA-A01 Packing |
79104-SNA-A01 |
US $4.20 |
||
|
6
|
6
79106-SNB-E51 Heater sub assy. |
79106-SNB-E51 |
US $284.16 |
||
|
7
|
7
79107-SND-E01 CoverHEATER PIPE |
79107-SND-E01 |
US $5.74 |
||
|
8
|
8
79108-SNA-A01 PlateEVAPORATOR LOWER |
79108-SNA-A01 |
US $7.14 |
||
|
9
|
9
79109-SNB-003 InsulatorEVAPORATOR LOWER |
79109-SNB-003 |
US $4.20 |
||
|
10
|
10
79110-SNB-013 Core sub assy.HEATER |
79110-SNB-013 |
US $439.82 |
||
|
11
|
11
79140-SNB-013 Motor assy.MODE |
79140-SNB-013 |
US $69.76 |
||
|
12
|
12
79160-SNB-013 Motor assy.AIR MIX |
79160-SNB-013 |
US $69.76 |
||
|
13
|
13
79308-SNB-E01 Joint setDUCT |
79308-SNB-E01 |
US $10.36 |
||
|
14
|
14
79330-SNA-A01
Transistor
|
79330-SNA-A01 |
— | ||
|
16
|
16
79731-S5A-000 GrommetHEATER PIPE |
79731-S5A-000 |
US $4.62 |
||
|
18
|
18
80211-SNB-003 Evaporator comp. |
80211-SNB-003 |
US $349.44 |
||
|
19
|
19
80221-SNB-003
Valve assy.
|
80221-SNB-003 |
— | ||
|
20
|
20
80271-SNB-000 HoseDRAIN |
80271-SNB-000 |
US $9.24 |
||
|
21
|
21
80534-S84-A41 Aspirator |
80534-S84-A41 |
from US $15.42 |
||
|
22
|
22
80550-SNC-A41 Sensor assyHEATER CORE |
80550-SNC-A41 |
US $28.42 |
||
|
23
|
23
80560-SNA-A01 ThermistorAIR CONDITIONER |
80560-SNA-A01 |
US $26.23 |
||
|
24
|
24
80566-SFA-003 ClipEVAPORATOR SENSOR |
80566-SFA-003 |
US $2.03 |
||
|
25
|
25
80650-SNC-J41
Sub harness
|
80650-SNC-J41 |
— | ||
|
26
|
26
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
27
|
27
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
28
|
28
90121-SNA-A00 BoltSTUD, 6X49 |
90121-SNA-A00 |
US $5.32 |
||
|
29
|
29
90127-S84-003 ScrewTAPPING, 4X16 |
90127-S84-003 |
US $1.05 |
||
|
30
|
30
90126-S5A-003 BoltSOCKET, 5X40 |
90126-S5A-003 |
US $1.33 |
||
|
31
|
31
90127-SX0-003 ScrewTAPPING, 4X16 |
90127-SX0-003 |
US $1.05 |
||
|
32
|
32
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
33
|
33
90661-S2A-003 ClipDRAIN HOSE |
90661-S2A-003 |
US $1.61 |
||
|
34
|
34
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
35
|
35
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
36
|
36
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
37
|
37
90860-SA5-003 PlugHOLE, 16MM |
90860-SA5-003 |
US $2.77 |
