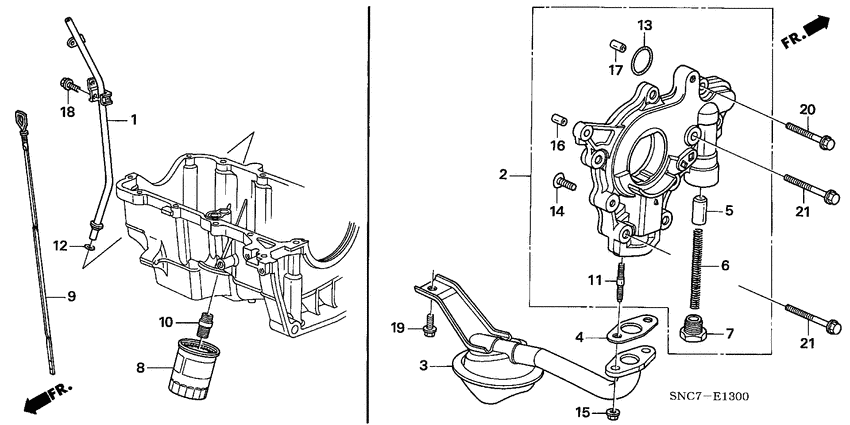

Oil pump Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX ALCANT
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-RMX-000 Pipe compOIL LEVEL |
11110-RMX-000 |
US $31.74 |
||
|
2
|
2
15100-PZA-003
Pump assy. Oil
|
15100-PZA-003 |
— | ||
|
3
|
3
15220-PZA-000
Strainer comp.
|
15220-PZA-000 |
— | ||
|
4
|
4
15221-PZ1-000 PackingOIL STRAINER |
15221-PZ1-000 |
from US $1.92 |
||
|
5
|
5
15231-413-020 ValveRELIEF |
15231-413-020 |
from US $14.21 |
||
|
6
|
6
15232-PHM-003
Spring
|
15232-PHM-003 |
— | ||
|
7
|
7
15233-PFB-003 BoltSEALING, 18MM |
15233-PFB-003 |
US $3.08 |
||
|
8
|
8
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
| replacement | |||||
|
8
|
8
15400-PLM-A02 OIL FILTER (HONEYWELL) |
15400-PLM-A02 |
from US $8.10 |
||
|
8
|
8
15400-RTA-004
Cartridge
|
15400-RTA-004 |
— | ||
| replacements | |||||
|
8
|
8
15400-PLM-A02 OIL FILTER (HONEYWELL) |
15400-PLM-A02 |
from US $8.10 |
||
|
8
|
8
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
| replacement | |||||
|
8
|
8
15400-PLM-A02 OIL FILTER (HONEYWELL) |
15400-PLM-A02 |
from US $8.10 |
||
|
9
|
9
15650-RMX-E01 Gauge comp.OIL LEVEL |
15650-RMX-E01 |
US $9.38 |
||
|
10
|
10
90015-PH1-013 HolderOIL FILTER |
90015-PH1-013 |
from US $3.26 |
||
|
11
|
11
90041-PA5-000 BoltSTUD, 6X28 |
90041-PA5-000 |
from US $2.52 |
||
|
12
|
12
91309-PJ7-010 O-ring11.5X3.5 |
91309-PJ7-010 |
from US $1.70 |
||
|
13
|
13
91326-PF4-004 O-ring24.4X2.4 (NOK) |
91326-PF4-004 |
from US $1.68 |
||
|
14
|
14
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
15
|
15
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
16
|
16
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
17
|
17
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
18
|
18
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
19
|
19
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
20
|
20
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
21
|
21
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
