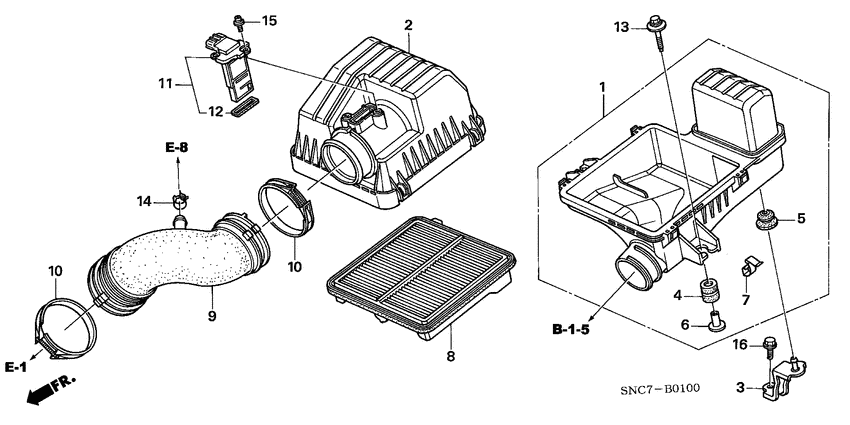

Air cleaner Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX ALCANT
- area code
- KE
- right-hand drive
- +
- navigation
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17201-RMX-000 Case setAIR CLEANER |
17201-RMX-000 |
US $60.03 |
||
|
2
|
2
17210-RMX-000 Cover comp.AIR CLEANER |
17210-RMX-000 |
US $38.40 |
||
|
3
|
3
17211-RMX-000
Stay comp. a
|
17211-RMX-000 |
— | ||
|
4
|
4
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
4
|
4
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
5
|
5
17212-P2J-000 RubberAIR CLEANER MOUNTING |
17212-P2J-000 |
from US $2.31 |
||
|
6
|
6
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
7
|
7
17217-P2J-300 ClipAIR CLEANER |
17217-P2J-300 |
from US $2.69 |
||
|
8
|
8
17220-RMX-000 ELEMENT ASSY., AIR CLEANER |
17220-RMX-000 |
US $39.98 |
||
|
9
|
9
17228-RMX-000 TubeAIR FLOW |
17228-RMX-000 |
US $54.16 |
||
|
10
|
10
17316-P1E-000 ClampAIR FLOW TUBE (70) |
17316-P1E-000 |
US $5.54 |
||
|
11
|
11
37980-RNA-A01 Meter assyAIR FLOW |
37980-RNA-A01 |
US $206.72 |
||
|
12
|
12
37985-RAD-L11 Gasket |
37985-RAD-L11 |
US $4.44 |
||
|
13
|
13
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $2.52 |
||
|
14
|
14
91405-PG7-003 ClipHOSE (D13) |
91405-PG7-003 |
US $3.26 |
||
|
15
|
15
93893-040-100-8 Screw-washer4X10 |
93893-040-100-8 |
from US $0.52 |
||
|
16
|
16
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
