	Description	OEM Part #	Price
1	1 16602-RMX-000 Bracket EGR VALVE GUARD	16602-RMX-000	US $21.63
2	2 17100-RMX-000 Manifold comp INTAKE	17100-RMX-000	US $267.52
3	3 17105-RMX-004 Gasket INTAKE MANIFOLD	17105-RMX-004	from US $16.64
4	4 17107-RNA-A01 Packing THROTTLE BODY	17107-RNA-A01	from US $10.36
5	5 17110-RMX-000 Chamber comp INTAKE MANIFOLD	17110-RMX-000	US $213.76
6	6 17115-RMX-007 Packing INTAKE PORT	17115-RMX-007	US $5.88
7	7 17116-RMX-000 Plate THROTTLE FLANGE	17116-RMX-000	US $5.18
8	8 17132-RMX-000 Stay a	17132-RMX-000	—
9	9 17134-RMX-000 Stay comp. b	17134-RMX-000	—
10	10 17145-RMX-000 Cover comp. EGR CHAMBER	17145-RMX-000	US $31.74
11	11 17146-RMX-004 Gasket EGR CHAMBER COVER	17146-RMX-004	US $13.57
12	12 18011-PWA-050 Valve set	18011-PWA-050	—
13	13 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET)	18715-PB2-000	from US $6.51
14	14 37830-PNC-003 Map Sensor assy MAP	37830-PNC-003	from US $145.18
15	15 37835-PGK-A01 O-ring	37835-PGK-A01	from US $2.15
16	16 92900-08032-1B Bolt STUD, 8X32	92900-08032-1B	from US $0.81
17	17 93892-050-200-8 Screw-washer 5X20	93892-050-200-8	from US $0.47
18	18 94050-08080 NUT, FLANGE, 8MM	94050-08080	from US $0.52
19	19 95701-060-140-8 Bolt FLANGE, 6X14	95701-060-140-8	from US $0.52
20	20 95701-060-160-8 Bolt FLANGE, 6X16	95701-060-160-8	from US $0.38
21	21 95701-060-250-8 Bolt FLANGE, 6X25	95701-060-250-8	from US $0.59
22	22 95701-080-160-8 Bolt FLANGE, 8X16	95701-080-160-8	from US $0.59
23	23 95701-080-200-8 Bolt FLANGE, 8X20	95701-080-200-8	from US $0.58
24	24 95701-080-250-8 Bolt FLANGE, 8X25	95701-080-250-8	from US $0.74
25	25 95701-080-320-8 Bolt FLANGE, 8X32	95701-080-320-8	from US $0.81
26	26 95701-080-350-8 Bolt FLANGE, 8X35	95701-080-350-8	from US $0.74

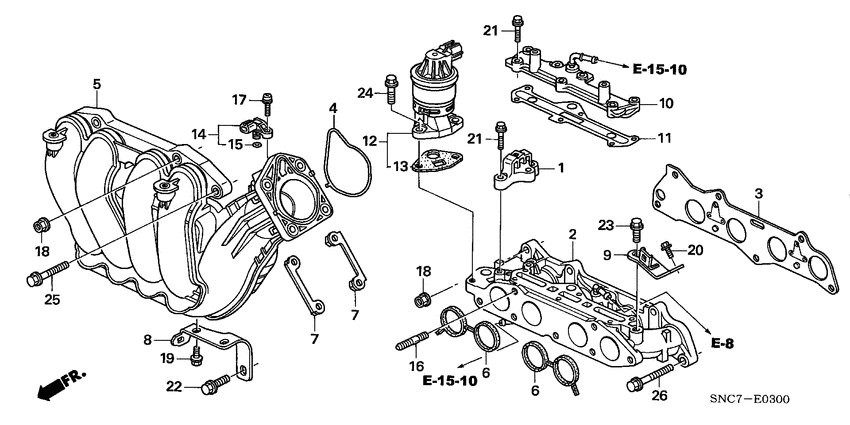

Intake manifold Diagram Honda CIVIC General 7056384-542602

Intake manifold Diagram Honda CIVIC General 7056384-542602
