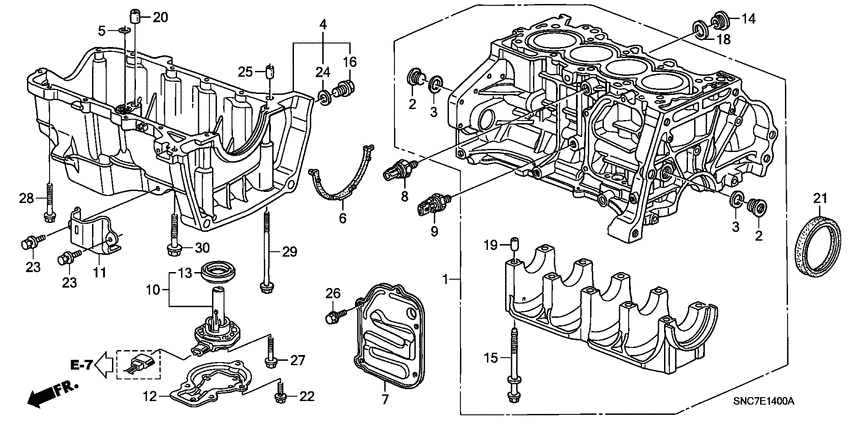

Cylinder block/oil pan Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MXB
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-RMX-000
Block assy
|
11000-RMX-000 |
— | ||
|
2
|
2
11106-PWA-300 BoltSEALING, 24MM |
11106-PWA-300 |
from US $3.42 |
||
|
3
|
3
11107-PWA-300 WasherSEALING, 24MM |
11107-PWA-300 |
from US $1.48 |
||
|
4
|
4
11200-RMX-E01 Pan assyOIL |
11200-RMX-E01 |
US $291.84 |
||
|
5
|
5
11203-PWA-003 O-ring17.8X2.4 (NOK) |
11203-PWA-003 |
from US $1.70 |
||
|
6
|
6
11252-PWA-000 PackingOIL PAN |
11252-PWA-000 |
from US $5.86 |
||
|
7
|
7
11851-PZA-000 CoverBREATHER |
11851-PZA-000 |
US $12.70 |
||
|
8
|
8
30530-RSH-004 Sensor compKNOCK |
30530-RSH-004 |
US $114.24 |
||
|
9
|
9
37241-RNA-A01 Switch assy, OIL PRESSUREOIL PRESSURE |
37241-RNA-A01 |
from US $33.05 |
||
|
10
|
10
37310-RSA-G02 Sensor assyOIL LEVEL |
37310-RSA-G02 |
US $254.72 |
||
|
11
|
11
37311-RSH-E01 CoverOIL LEVEL SENSOR (A) |
37311-RSH-E01 |
US $14.21 |
||
|
12
|
12
37312-RMX-G00 CoverOIL LEVEL SENSOR (B) |
37312-RMX-G00 |
US $16.77 |
||
|
13
|
13
37312-RSA-G02 PackingOIL LEVEL SENSOR |
37312-RSA-G02 |
from US $4.44 |
||
|
14
|
14
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
15
|
15
90008-PM0-003 Bolt-washer10X112 |
90008-PM0-003 |
US $5.04 |
||
|
16
|
16
90009-PY3-000 DRAIN PLUG BOLT, 14MM |
90009-PY3-000 |
from US $2.92 |
||
|
18
|
18
90401-PR4-000 WasherSEALING, 28MM |
90401-PR4-000 |
from US $1.89 |
||
|
19
|
19
90702-PE0-000 Dowel pin12X18 |
90702-PE0-000 |
from US $1.89 |
||
|
20
|
20
90705-PT0-000 Dowel pin16X22 |
90705-PT0-000 |
from US $1.48 |
||
|
21
|
21
91214-PWA-003 Oil seal80X98X10 (NOK) |
91214-PWA-003 |
from US $13.87 |
||
|
22
|
22
93403-060-140-5 Bolt-washer6X14 |
93403-060-140-5 |
US $0.59 |
||
|
23
|
23
93403-060-200-5 Bolt-washer6X20 |
93403-060-200-5 |
US $0.65 |
||
|
24
|
24
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
25
|
25
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
27
|
27
95701-060-220-5 BoltFLANGE, 6X22 |
95701-060-220-5 |
US $0.59 |
||
|
28
|
28
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
29
|
29
95701-060-750-8 BoltFLANGE, 6X75 |
95701-060-750-8 |
from US $0.90 |
||
|
30
|
30
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
