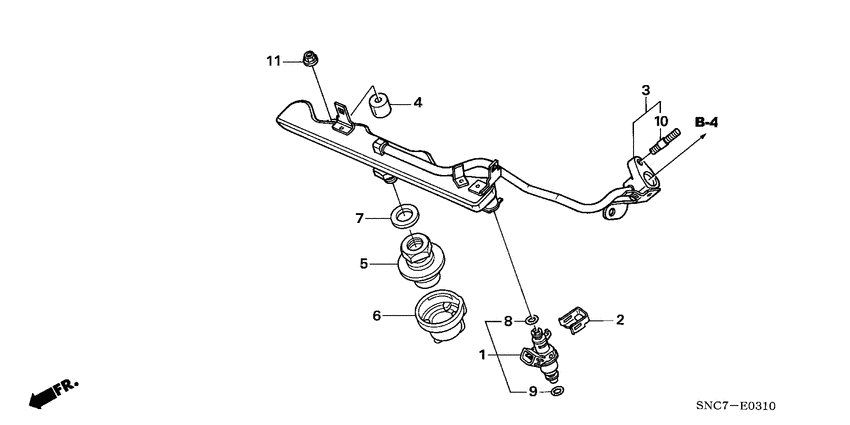

Fuel injector Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX
- area code
- KG
- left-hand drive
- +
- corner sensor
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16450-RGA-003 Injector assyFUEL |
16450-RGA-003 |
US $138.24 |
||
|
2
|
2
16451-PLC-000 ClipINJECTOR |
16451-PLC-000 |
from US $3.64 |
||
|
3
|
3
16620-RMX-013 Pipe compFUEL |
16620-RMX-013 |
US $145.92 |
||
|
4
|
4
16638-PT2-000 InsulatorFUEL PIPE |
16638-PT2-000 |
US $3.71 |
||
|
5
|
5
16680-PZA-L01 Damper assy.PULSATION |
16680-PZA-L01 |
US $31.23 |
||
|
6
|
6
16681-PRB-A00 CapPULSATION DAMPER |
16681-PRB-A00 |
US $3.08 |
||
|
7
|
7
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
8
|
8
91301-PLC-000 O-ring7.47X3.6 |
91301-PLC-000 |
from US $1.80 |
||
|
9
|
9
91302-PNA-003 O-ring7.45X3.61(NOK) |
91302-PNA-003 |
from US $1.39 |
||
|
10
|
10
92900-06022-1B BoltSTUD, 6X22 |
92900-06022-1B |
US $0.59 |
||
|
11
|
11
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
