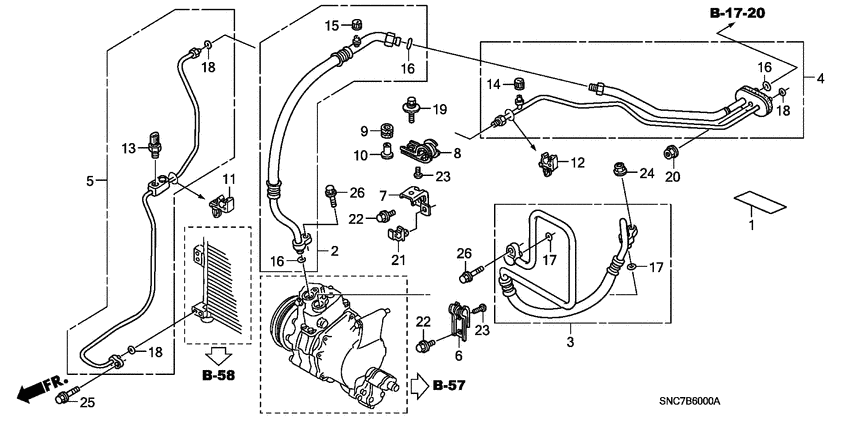

Air conditioner (HOSES/PIPES; LH) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX DAYTIME LI
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-SNC-G00 LabelAIR CONDITIONER INFORMATION (HFC134A) |
80050-SNC-G00 |
US $1.47 |
||
|
2
|
2
80312-SNC-A01 Hose comp.SUCTION |
80312-SNC-A01 |
US $83.54 |
||
|
3
|
3
80316-SNC-A02 Hose comp.DISCHARGE |
80316-SNC-A02 |
US $175.64 |
||
|
4
|
4
80320-SNC-A01 Pipe assy.AIR CONDITIONER |
80320-SNC-A01 |
US $98.56 |
||
|
5
|
5
80341-SNC-G01 Pipe compRECEIVER |
80341-SNC-G01 |
US $160.07 |
||
|
6
|
6
80361-SNA-A00 ClampDISCHARGE HOSE |
80361-SNA-A00 |
US $11.40 |
||
|
7
|
7
80361-SNC-A00
Stay
|
80361-SNC-A00 |
— | ||
|
8
|
8
80362-SNA-A00 Clamp aSUCTION PIPE |
80362-SNA-A00 |
US $8.63 |
||
|
9
|
9
80366-SFA-000 RubberMOUNT |
80366-SFA-000 |
US $1.61 |
||
|
10
|
10
80367-SFA-000 CollarDISTANCE |
80367-SFA-000 |
US $2.31 |
||
|
11
|
11
80381-SNA-A01 ClipRECEIVER PIPE |
80381-SNA-A01 |
US $1.89 |
||
|
12
|
12
80381-SV7-A01 ClampRECEIVER PIPE |
80381-SV7-A01 |
US $4.90 |
||
|
13
|
13
80450-SFE-003
Sensor assy
|
80450-SFE-003 |
— | ||
| replacement | |||||
|
13
|
13
80450T2FA01 SENSOR ASSY PRESSU |
80450T2FA01 |
from US $39.79 |
||
|
14
|
14
80865-SL0-003 CapVALVE (H) |
80865-SL0-003 |
US $5.14 |
||
|
15
|
15
80866-SJK-003 Cap comp.VALVE (L) |
80866-SJK-003 |
US $3.22 |
||
|
16
|
16
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
17
|
17
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
18
|
18
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
19
|
19
90105-SFA-003 Bolt-washer6X30 |
90105-SFA-003 |
US $1.61 |
||
|
20
|
20
90203-SB0-000 NutFLANGE, 6MM |
90203-SB0-000 |
from US $1.33 |
||
|
21
|
21
91548-SR3-003 Clip8MM |
91548-SR3-003 |
US $1.26 |
||
|
22
|
22
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
23
|
23
93500-040-080-4 ScrewPAN, 4X8 |
93500-040-080-4 |
from US $0.37 |
||
|
24
|
24
94050-06040 NutFLANGE, 6MM |
94050-06040 |
from US $0.52 |
||
|
25
|
25
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
26
|
26
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
