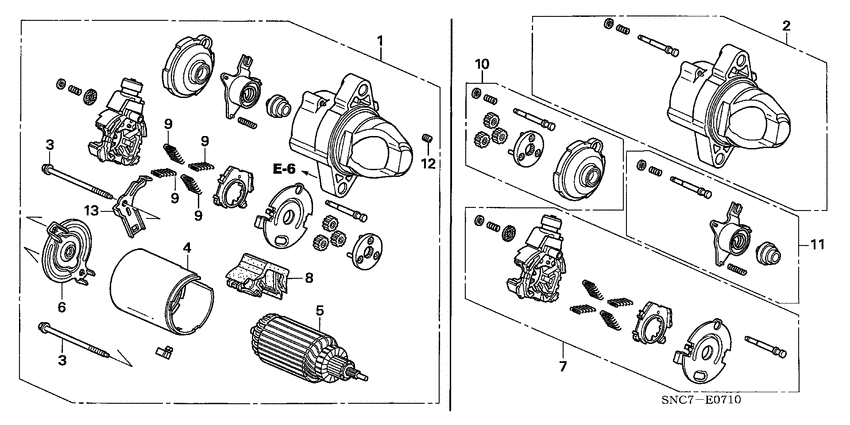

Starter motor (MITSUBA) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX DAYTIME LI
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-RMX-004
Motor assy. STARTER (SM-71003) (MITSUBA)
|
31200-RMX-004 |
— | ||
|
2
|
2
31201-RMX-004 Gear cover set00000000 - 5003910 |
31201-RMX-004 |
US $234.24 |
||
|
2
|
2
31201-RMX-014 Gear cover set5003911 - |
31201-RMX-014 |
US $230.40 |
||
|
3
|
3
31202-RMX-004 Bolt set |
31202-RMX-004 |
US $3.08 |
||
|
4
|
4
31206-RMX-004
Yoke assy.
|
31206-RMX-004 |
— | ||
|
5
|
5
31207-RMX-004 Armature assy. |
31207-RMX-004 |
US $199.68 |
||
|
6
|
6
31209-RNA-A51 Bracket unitRR. |
31209-RNA-A51 |
US $5.88 |
||
|
7
|
7
31210-RMX-004 Brush holder set |
31210-RMX-004 |
US $55.04 |
||
|
8
|
8
31211-RNA-A51 CoverSWITCH |
31211-RNA-A51 |
US $5.04 |
||
|
9
|
9
31213-PHM-004
Spring
|
31213-PHM-004 |
— | ||
|
10
|
10
31220-RNA-A51 Gear setREDUCTION |
31220-RNA-A51 |
US $197.12 |
||
|
11
|
11
31230-RNA-A61 Plunger set |
31230-RNA-A61 |
US $28.29 |
||
|
12
|
12
31252-PD2-006 RubberBUSH (MITSUBA) 00000000 - 5003910 |
31252-PD2-006 |
from US $1.96 |
||
|
13
|
13
31292-RMX-004
Stay
00000000 - 5003910 |
31292-RMX-004 |
— | ||
|
13
|
13
31292-RMX-014
Stay
5003911 - |
31292-RMX-014 |
— |
