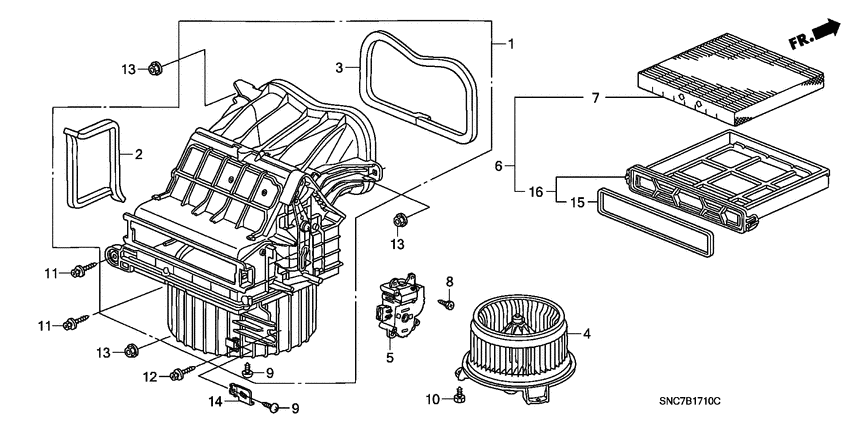

Heater blower (LH) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX
- area code
- KG
- left-hand drive
- +
- navigation
- +
- leather seat
- +
- corner sensor
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79305-SNA-G01 Blower sub assy. |
79305-SNA-G01 |
US $207.36 |
||
|
2
|
2
79306-SNA-A01 SealBLOWER OUTER |
79306-SNA-A01 |
US $3.43 |
||
|
3
|
3
79307-SNA-A01 PackingIN. |
79307-SNA-A01 |
US $1.19 |
||
|
4
|
4
79310-SNA-A01
Motor assy.
00000000 - AS200393 |
79310-SNA-A01 |
— | ||
|
4
|
4
79310-SNA-A02 Motor assy.FAN AS200394 - |
79310-SNA-A02 |
US $230.40 |
||
|
5
|
5
79350-SNA-A41 Motor assy.FRESH & RECIRCULAR |
79350-SNA-A41 |
US $77.44 |
||
|
7
|
7
80292-SWA-A01
Element
|
80292-SWA-A01 |
— | ||
| replacement | |||||
|
7
|
7
80292-SWA-A02 FILTER ELEMENT |
80292-SWA-A02 |
US $54.40 |
||
|
8
|
8
90121-SR3-003 ScrewTAPPING, 5X12 00000000 - AS200373 |
90121-SR3-003 |
US $2.44 |
||
|
8
|
8
90127-S84-003 ScrewTAPPING, 4X16 AS200374 - |
90127-S84-003 |
US $1.05 |
||
|
9
|
9
90127-SX0-003 ScrewTAPPING, 4X16 |
90127-SX0-003 |
US $1.05 |
||
|
10
|
10
90132-SR3-003 ScrewTAPPING, 5X16 |
90132-SR3-003 |
US $1.12 |
||
|
11
|
11
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
12
|
12
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
13
|
13
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
14
|
14
79029-SNB-D51 BracketHARNESS CLIP |
79029-SNB-D51 |
US $3.78 |
||
|
15
|
15
80293-SEA-941 SealFILTER |
80293-SEA-941 |
US $4.07 |
||
|
16
|
16
80297-SEA-941 Frame set |
80297-SEA-941 |
US $26.33 |
||
