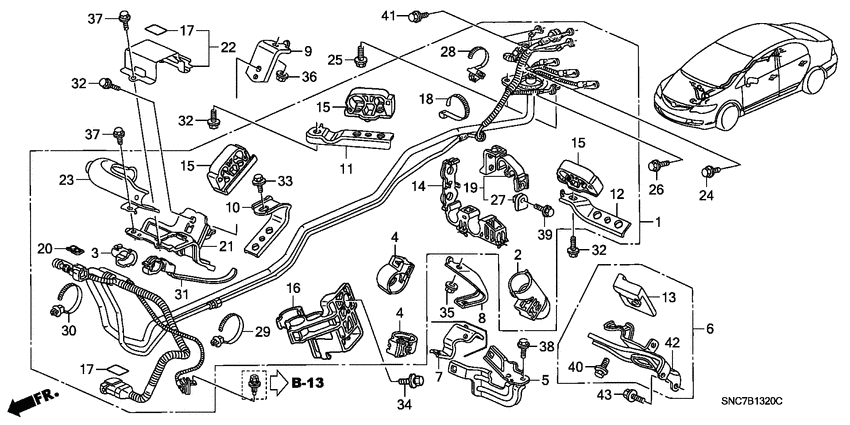

Ima main cable/stay Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX ALCANT
- area code
- KG
- left-hand drive
- +
- leather seat
- +
- hid
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1F010-RMX-G09 Cable assyHIGH VOLTAGE |
1F010-RMX-G09 |
US $832 |
||
|
2
|
2
1F041-RMX-003 HolderCORRUGATED (25) (D) |
1F041-RMX-003 |
US $7.56 |
||
|
3
|
3
1F042-RMX-003 HolderPIPE |
1F042-RMX-003 |
US $7.56 |
||
|
4
|
4
1F044-RCJ-003 HolderCORRUGATED(25)(M) |
1F044-RCJ-003 |
US $7.28 |
||
|
5
|
5
1F060-RMX-000
Stay comp. a
|
1F060-RMX-000 |
— | ||
|
7
|
7
1F062-RMX-A00
Stay c
|
1F062-RMX-A00 |
— | ||
|
10
|
10
1F064-RMX-010
Stay e
|
1F064-RMX-010 |
— | ||
|
11
|
11
1F066-RMX-010
Stay g
|
1F066-RMX-010 |
— | ||
|
12
|
12
1F067-RMX-010
Stay h
|
1F067-RMX-010 |
— | ||
|
14
|
14
1F085-RMX-013 Clamp aCABLE |
1F085-RMX-013 |
US $4.13 |
||
|
15
|
15
1F086-RMX-013 Clamp bCABLE |
1F086-RMX-013 |
US $2.87 |
||
|
16
|
16
1F087-RMX-003 Clamp compCABLE (C) |
1F087-RMX-003 |
US $13.16 |
||
|
17
|
17
1K811-RMX-G00 LabelCAUTION |
1K811-RMX-G00 |
US $2.59 |
||
|
18
|
18
32112-SFA-003 BandCABLE (145MM) |
32112-SFA-003 |
US $0.42 |
||
|
19
|
19
32424-RMX-003 Clamp assyDOWN CONVERTOR CABLE |
32424-RMX-003 |
US $15.87 |
||
|
20
|
20
38863-RCJ-A01 Cpa |
38863-RCJ-A01 |
US $3.08 |
||
|
21
|
21
38866-RMX-A02
Stay comp
|
38866-RMX-A02 |
— | ||
|
22
|
22
38871-RMX-G02 Cover comp.SHIELD CONNECTER |
38871-RMX-G02 |
US $7.28 |
||
|
23
|
23
38879-RMX-A01 ProtectorCABLE |
38879-RMX-A01 |
US $15.87 |
||
|
24
|
24
90120-PZA-000 BoltFLANGE, 6X12 |
90120-PZA-000 |
US $1.19 |
||
|
25
|
25
90148-S2K-003 BoltEARTH, 8X16 |
90148-S2K-003 |
US $2.31 |
||
|
26
|
26
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
27
|
27
90323-SE0-000 NutCLIP, 6MM |
90323-SE0-000 |
US $6.77 |
||
| replacement | |||||
|
27
|
27
90305-SH3-000 NutAIR SPOILER CLIP |
90305-SH3-000 |
from US $2.59 |
||
|
28
|
28
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
29
|
29
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
30
|
30
91558-PFD-003 ClipHARNESS BAND (GRAY) (135MM) (7MM HOLE) |
91558-PFD-003 |
US $1.61 |
||
|
31
|
31
91559-S5A-003 HolderHARNESS (BLACK) |
91559-S5A-003 |
from US $2.45 |
||
|
32
|
32
93404-060-120-4 Bolt-washer6X12 |
93404-060-120-4 |
US $0.52 |
||
|
33
|
33
93404-060-120-5
Bolt-washer
|
93404-060-120-5 |
— | ||
| replacement | |||||
|
33
|
33
93404-060-140-5 Bolt-washer6X14 |
93404-060-140-5 |
from US $0.52 |
||
|
34
|
34
93404-060-160-4 Bolt-washer6X16 |
93404-060-160-4 |
US $0.52 |
||
|
35
|
35
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
37
|
37
95701-060-120-5 BoltFLANGE, 6X12 |
95701-060-120-5 |
from US $0.52 |
||
|
38
|
38
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
39
|
39
95701-060-180-5 BoltFLANGE, 6X18 |
95701-060-180-5 |
US $0.52 |
||
|
41
|
41
90120-PZA-000 BoltFLANGE, 6X12 |
90120-PZA-000 |
US $1.19 |
||
|
42
|
42
1F061-RMX-020
Stay assy. b
|
1F061-RMX-020 |
— | ||
|
43
|
43
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
