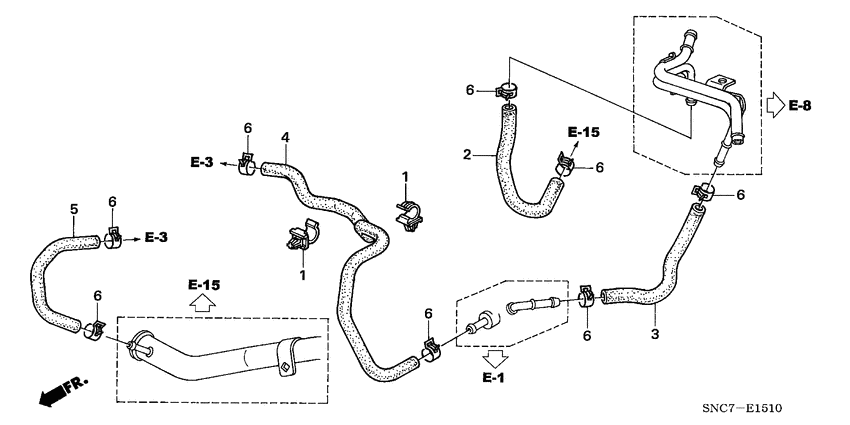

Water hose Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX ALCANT
- area code
- KG
- left-hand drive
- +
- leather seat
- +
- hid
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19509-P72-003 ClampELECTRONIC AIR CONTROL VALVE HOSE |
19509-P72-003 |
US $1.68 |
||
|
2
|
2
19521-RMX-000 HoseWATER OUTLET COVER OUTER |
19521-RMX-000 |
US $9.24 |
||
|
3
|
3
19522-RMX-000 HoseTHROTTLE BODY IN. |
19522-RMX-000 |
US $6.02 |
||
|
4
|
4
19523-RMX-000 HoseTHROTTLE BODY OUTLET |
19523-RMX-000 |
US $13.70 |
||
|
5
|
5
19524-RMX-000 HoseCONNECTING PIPE IN. |
19524-RMX-000 |
US $5.60 |
||
|
6
|
6
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
