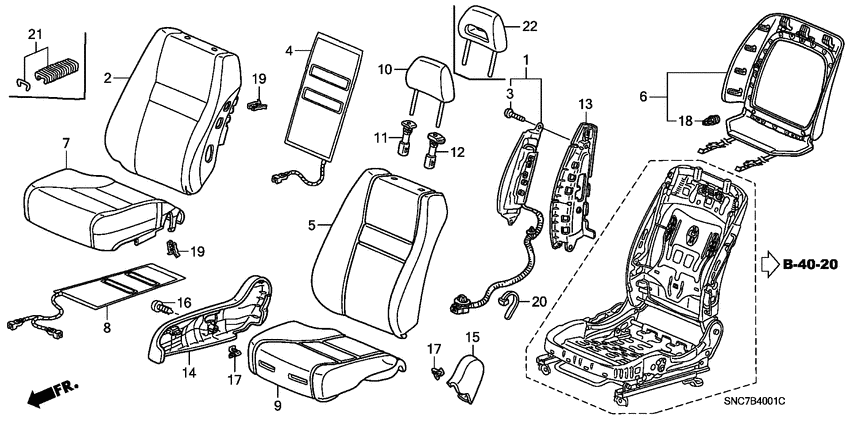

Front seat (LH; PASSENGER SIDE) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78050-SNB-G81
Module assy.
|
78050-SNB-G81 |
— | ||
|
2
|
2
81121-SNB-E32ZC CoverR. FR. SEATBACK TRIM (SIDE AIRBAG) *YR400L* |
81121-SNB-E32ZC |
US $312.32 |
||
|
2
|
2
81121-SNB-E32ZA CoverR. FR. SEATBACK TRIM (SIDE AIRBAG) *NH167L* |
81121-SNB-E32ZA |
US $312.32 |
||
|
3
|
3
81123-SNA-A01 Screw6X18 |
81123-SNA-A01 |
US $1.82 |
||
|
4
|
4
81124-SNB-E11 Heater comp.R. FR. SEATBACK |
81124-SNB-E11 |
US $183.04 |
||
|
5
|
5
81127-SNB-J11 Pad compR. FR. SEATBACK |
81127-SNB-J11 |
US $117.12 |
||
|
6
|
6
81128-SNB-J12ZE CoverR. FR. SEATBACK *YR400L* |
81128-SNB-J12ZE |
US $74.88 |
||
|
6
|
6
81128-SNB-J12ZA CoverR. FR. SEATBACK *NH167L* |
81128-SNB-J12ZA |
US $74.88 |
||
|
7
|
7
81131-SNB-A02ZA CoverR. FR. SEAT CUSHION TRIM *NH167L* |
81131-SNB-A02ZA |
US $234.24 |
||
|
7
|
7
81131-SNB-A02ZD CoverR. FR. SEAT CUSHION TRIM *YR400L* |
81131-SNB-A02ZD |
US $234.24 |
||
|
8
|
8
81134-SNB-E01 Heater comp.R. FR. SEAT CUSHION |
81134-SNB-E01 |
US $253.44 |
||
|
9
|
9
81137-SNB-G01 Pad compR. FR. SEAT CUSHION (WITH SITTING SWITCH) |
81137-SNB-G01 |
US $136.96 |
||
|
11
|
11
81143-SDA-A01YP GuideHEADREST FREE *YR400L* |
81143-SDA-A01YP |
US $6.02 |
||
|
11
|
11
81143-SDA-A01ZA GuideHEADREST FREE *NH167L* |
81143-SDA-A01ZA |
US $6.02 |
||
|
12
|
12
81144-SDA-A01YQ Guide compHEADREST LOCK *YR400L* |
81144-SDA-A01YQ |
US $7.42 |
||
|
12
|
12
81144-SDA-A01ZA Guide compHEADREST LOCK *NH167L* |
81144-SDA-A01ZA |
US $7.42 |
||
|
13
|
13
81160-SNA-A01 HolderR. MODULE |
81160-SNA-A01 |
US $7.56 |
||
|
14
|
14
81238-SNB-G01ZE CoverR. FR. SEAT RECLINING *YR400L* |
81238-SNB-G01ZE |
US $13.82 |
||
|
14
|
14
81238-SNB-G01ZC CoverR. FR. SEAT RECLINING *NH167L* |
81238-SNB-G01ZC |
US $13.82 |
||
|
15
|
15
81248-SNA-K01ZD CoverR. RECLINING INNER *NH167L* |
81248-SNA-K01ZD |
US $6.30 |
||
|
15
|
15
81248-SNA-K01ZE CoverR. RECLINING INNER *YR400L* |
81248-SNA-K01ZE |
US $6.30 |
||
|
16
|
16
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
17
|
17
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
18
|
18
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
||
|
19
|
19
81291-SNA-A01 Clip |
81291-SNA-A01 |
US $2.10 |
||
|
20
|
20
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
21
|
21
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
22
|
22
81140-SNB-J03ZE Headrest assyFR. SEAT *NH167L* |
81140-SNB-J03ZE |
US $131.84 |
||
|
22
|
22
81140-SNB-J03ZF Headrest assyFR. SEAT *YR400L* |
81140-SNB-J03ZF |
US $131.84 |
