	Description	OEM Part #	Price
1	1 33101-SNB-G61 Headlight unit R. (HID)	33101-SNB-G61	US $529.92
2	2 33105-S5N-C01 Nut SPECIAL	33105-S5N-C01	US $3.58
3	3 33115-S84-A01 Bulb HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	33115-S84-A01	from US $15.35
3	3 33115-S84-A11 Bulb HEADLIGHT (HB3) (12V 60W) (STANLEY)	33115-S84-A11	US $22.44
5	5 33126-SNA-A01 Cover RUBBER	33126-SNA-A01	US $8.54
6	6 33130-SJK-J01 Adjuster unit HEADLIGHT	33130-SJK-J01	US $176.80
7	7 33151-SNB-G61 Headlight unit	33151-SNB-G61	—
8	8 33301-SA0-741 Bulb (12V 5W) (12V 5W) (STANLEY)	33301-SA0-741	from US $2.37
9	9 33303-SAA-003 Socket comp T20 S) (AMBER	33303-SAA-003	from US $7.55
10	10 33303-S2R-003 Bulb WEDGE (12V 21W) (STANLEY) (AMBER)	33303-S2R-003	from US $2.96
11	11 33304-S5A-003 Socket comp T10	33304-S5A-003	from US $7.33
12	12 93405-060-160-4 Bolt-washer 6X16	93405-060-160-4	from US $0.59
13	13 06100-SNB-J01 Leg kit a R. HEADLIGHT MOUNTING	06100-SNB-J01	from US $17.01
14	14 06100-SNB-J11 Leg kit b R. HEADLIGHT MOUNTING	06100-SNB-J11	US $15.10
15	15 06150-SNB-J01 Leg kit a L. HEADLIGHT MOUNTING	06150-SNB-J01	US $24.34
16	16 06150-SNB-J11 Leg kit b L. HEADLIGHT MOUNTING	06150-SNB-J11	US $15.10
17	17 33105-S5N-C01 Nut SPECIAL	33105-S5N-C01	US $3.58
18	18 93913-154G0 Screw TAPPING, 5X16 (PO)	93913-154G0	US $1.11
19	19 33108-SEA-J01 Screw SPECIAL TAPPING (6X14)	33108-SEA-J01	US $1.33
20	20 33109-S6A-J71 Gasket SEAL	33109-S6A-J71	US $6.19
21	21 33116-S0A-J11 Bulb HEADLIGHT (D2R) (HID)	33116-S0A-J11	US $176.80
22	22 33119-TA0-003 Control unit	33119-TA0-003	US $254.32
23	23 33121-SFE-901 Seal GASKET (2)	33121-SFE-901	US $6.16
24	24 33127-SNB-C11 Cover comp.	33127-SNB-C11	US $10.92
25	25 33129-TA0-003 Igniter HID	33129-TA0-003	US $243.85

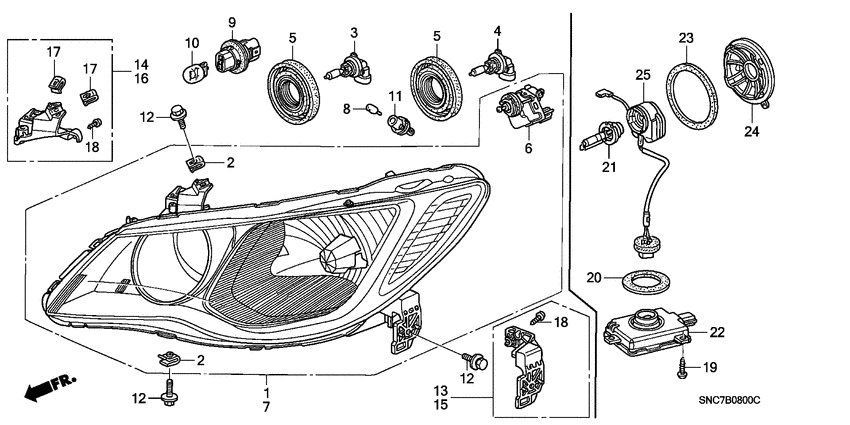

Headlight Diagram Honda CIVIC General 7056249-542592

Headlight Diagram Honda CIVIC General 7056249-542592
