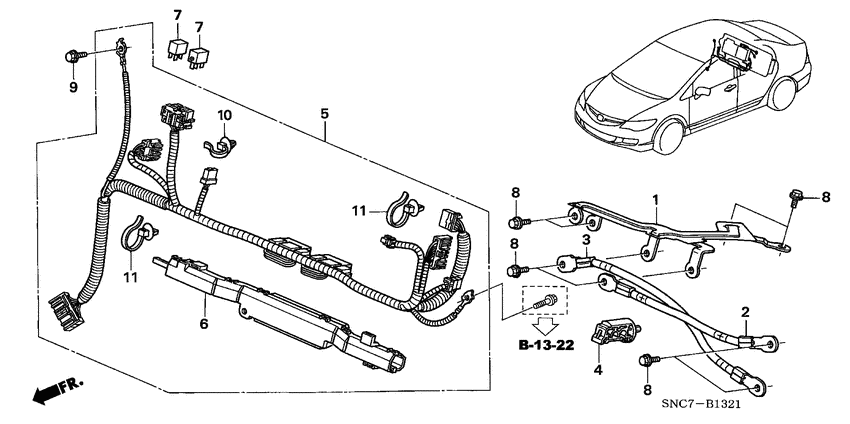

Ima wire harness Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX DAYTIME LI
- area code
- KG
- left-hand drive
- +
- navigation
- +
- hid
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1F110-RMX-003 Busplate comp.PDU INPUT |
1F110-RMX-003 |
US $46.72 |
||
|
2
|
2
1F131-RMX-000 CableDOWN CONVERTOR PLUS |
1F131-RMX-000 |
US $18.56 |
||
|
3
|
3
1F132-RMX-000 CableDOWN CONVERTOR MINUS |
1F132-RMX-000 |
US $23.55 |
||
|
4
|
4
1F134-RMX-003 ClipHIGH VOLTAGE CABLE |
1F134-RMX-003 |
US $2.59 |
||
|
5
|
5
1N000-RMX-030 HarnessIPU |
1N000-RMX-030 |
US $200.96 |
||
|
6
|
6
1N001-RMX-010 HolderIPU HARNESS |
1N001-RMX-010 |
US $20.10 |
||
|
7
|
7
39794-SDA-A05 Relay assyPOWER(MICRO ISO) (MITSUBA) |
39794-SDA-A05 |
from US $16.18 |
||
|
8
|
8
90120-PZA-000 BoltFLANGE, 6X12 |
90120-PZA-000 |
US $1.19 |
||
|
9
|
9
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
10
|
10
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
11
|
11
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
