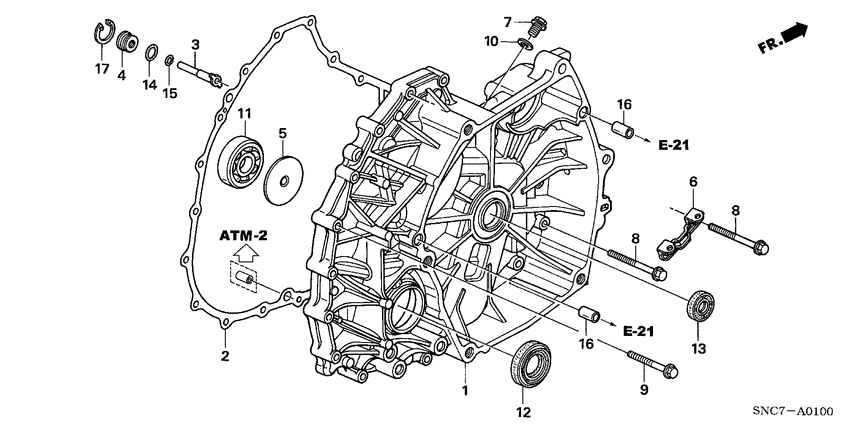

Flywheel case Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX
- area code
- KE
- right-hand drive
- +
- navigation
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21111-RPS-000
Case
|
21111-RPS-000 |
— | ||
|
2
|
2
21811-RPS-000 PackingFLYWHEEL CASE |
21811-RPS-000 |
US $28.42 |
||
|
3
|
3
22731-P4V-300 Pipe eFEED |
22731-P4V-300 |
US $3.43 |
||
|
4
|
4
22734-PWR-000 GuideFEED PIPE |
22734-PWR-000 |
US $5.46 |
||
|
5
|
5
23225-PZC-000 PlateOIL GUIDE |
23225-PZC-000 |
US $2.73 |
||
|
6
|
6
32745-RMX-000
Stay e
|
32745-RMX-000 |
— | ||
|
7
|
7
90004-PE2-005 BoltSEALING, 10MM |
90004-PE2-005 |
from US $2.22 |
||
|
8
|
8
90004-PWR-000 BoltFLANGE, 8X45 |
90004-PWR-000 |
US $1.96 |
||
|
9
|
9
90005-PWR-000 BoltFLANGE, 8X60 |
90005-PWR-000 |
from US $1.75 |
||
|
10
|
10
90401-PE2-003 WasherSEALING, 10MM |
90401-PE2-003 |
from US $2.15 |
||
|
11
|
11
91002-P4V-003 BearingBALL (6305) |
91002-P4V-003 |
US $17.95 |
||
|
12
|
12
91206-PHR-003 Oil seal35X58X8 (NOK) |
91206-PHR-003 |
from US $7.65 |
||
|
13
|
13
91207-PWR-003 Oil seal19X37X7(NOK) |
91207-PWR-003 |
from US $4.63 |
||
|
14
|
14
91301-PWR-003 O-ring16.7X1.9 (NOK) |
91301-PWR-003 |
from US $1.19 |
||
|
15
|
15
91314-PC9-003 O-ring8.5X1.9 (ARAI) |
91314-PC9-003 |
from US $1.63 |
||
| replacement | |||||
|
15
|
15
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
16
|
16
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
17
|
17
94520-22120 CirclipINTERNAL, 22MM |
94520-22120 |
US $0.59 |
||
