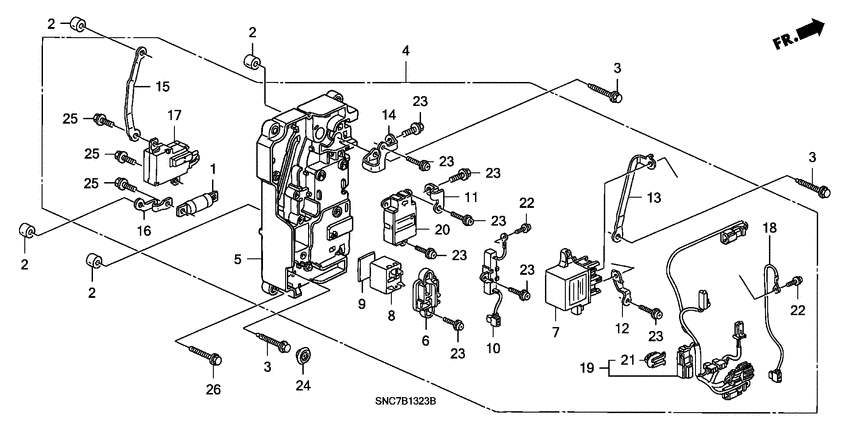

Ima main switch/junction board (-'08) Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MXB
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1C313-RMX-003 FuseHIGH VOLTAGE (100A) |
1C313-RMX-003 |
US $72.96 |
||
|
2
|
2
1D450-RMX-000 CollarPOLE |
1D450-RMX-000 |
US $5.74 |
||
|
3
|
3
1D460-RMX-000 BoltCOLLAR |
1D460-RMX-000 |
US $1.96 |
||
|
4
|
4
1E100-RMX-013 Board assyJUNCTION |
1E100-RMX-013 |
US $1,038.08 |
||
|
5
|
5
1E110-RMX-013 Plate compJUNCTION BOARD |
1E110-RMX-013 |
US $153.60 |
||
|
6
|
6
1E130-RMX-003 CoverPRECHARGE |
1E130-RMX-003 |
US $8.12 |
||
|
7
|
7
1E150-RMX-003
Contactor
|
1E150-RMX-003 |
— | ||
|
8
|
8
1E160-RMX-003 ContactorPRECHARGE |
1E160-RMX-003 |
US $84.48 |
||
|
9
|
9
1E161-PZA-003 Cushion |
1E161-PZA-003 |
US $2.31 |
||
|
10
|
10
1E170-RMX-003 Resistor compPRECHARGE |
1E170-RMX-003 |
US $16.77 |
||
|
11
|
11
1E420-RMX-003 BusbarMINUS |
1E420-RMX-003 |
US $8.40 |
||
|
12
|
12
1E421-RMX-003 BusbarCENTER INPUT |
1E421-RMX-003 |
US $8.40 |
||
|
13
|
13
1E422-RMX-013 BusbarCENTER OUTPUT |
1E422-RMX-013 |
US $16.26 |
||
|
14
|
14
1E423-RMX-003 BusbarPLUS |
1E423-RMX-003 |
US $15.74 |
||
|
15
|
15
1E441-RMX-003 BusbarMAIN SWITCH OUTPUT |
1E441-RMX-003 |
US $16.90 |
||
|
16
|
16
1E442-RMX-003 BusbarMAIN FUSE INPUT |
1E442-RMX-003 |
US $8.12 |
||
|
17
|
17
1E610-RMX-003
Switch assy
|
1E610-RMX-003 |
— | ||
|
18
|
18
1F651-RMX-013 HarnessPRECHARGE OUTPUT |
1F651-RMX-013 |
US $10.08 |
||
|
19
|
19
1F660-RMX-013 HarnessCONTROL |
1F660-RMX-013 |
US $74.88 |
||
|
20
|
20
1K530-RMX-003 Sensor assyBATTERY CURRENT |
1K530-RMX-003 |
US $192 |
||
|
21
|
21
91533-S82-003 ClipCOUPLER(BLACK) |
91533-S82-003 |
from US $3.08 |
||
|
22
|
22
93891-040-100-8 Screw-washer4X10 |
93891-040-100-8 |
from US $0.44 |
||
|
23
|
23
93891-050-160-8 Screw-washer5X16 |
93891-050-160-8 |
from US $0.44 |
||
|
24
|
24
95550-18000 PlugBLIND, 18MM |
95550-18000 |
US $1.55 |
||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
26
|
26
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
