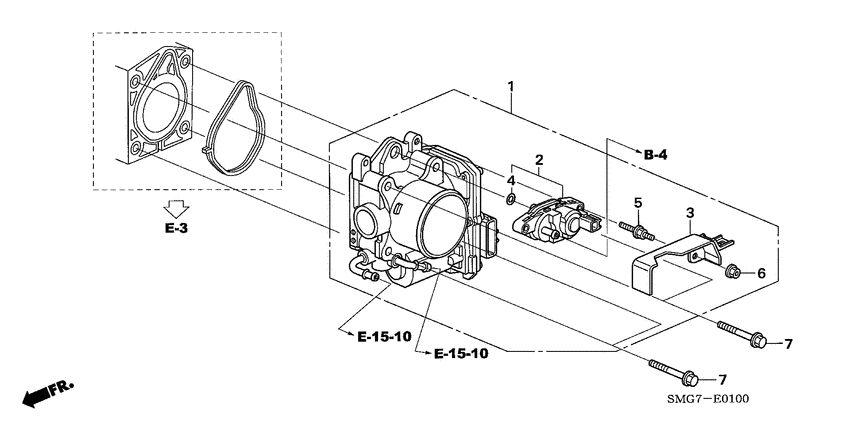

Throttle body (1.4L) Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 1.4 S
- area code
- KE
- right-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16400-RSH-E01
Throttle body
|
16400-RSH-E01 |
— | ||
|
2
|
2
36162-RSH-E01
Valve assy.
|
36162-RSH-E01 |
— | ||
|
3
|
3
36163-RSH-E00
Stay comp
|
36163-RSH-E00 |
— | ||
|
4
|
4
37835-PGK-A01 O-ring |
37835-PGK-A01 |
from US $2.15 |
||
|
5
|
5
90002-RSH-E00 BoltPURGE CONTROL SOLENOID |
90002-RSH-E00 |
US $3.92 |
||
|
6
|
6
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
7
|
7
90012-RNA-A00 Bolt-washer8X55 |
90012-RNA-A00 |
US $1.61 |
