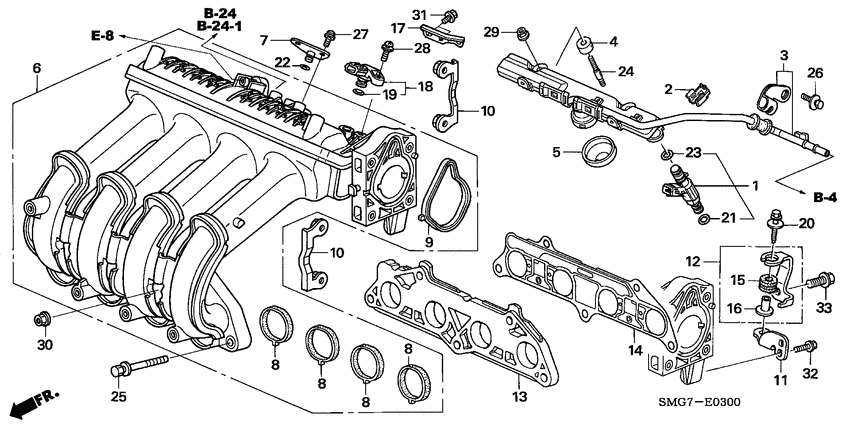

Intake manifold (1.4L) Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 1.4 SE
- area code
- KE
- right-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16450-RGA-003 Injector assyFUEL |
16450-RGA-003 |
US $138.24 |
||
|
2
|
2
16451-PLC-000 ClipINJECTOR |
16451-PLC-000 |
from US $3.64 |
||
|
3
|
3
16610-PWA-030 Damper setPULSATION |
16610-PWA-030 |
US $139.52 |
||
|
4
|
4
16638-PH7-000 InsulatorFUEL PIPE |
16638-PH7-000 |
US $3.08 |
||
|
5
|
5
16682-PWA-003 CoverPULSATION DAMPER |
16682-PWA-003 |
US $2.03 |
||
|
6
|
6
17100-RSH-E00 Manifold compINTAKE |
17100-RSH-E00 |
US $236.80 |
||
|
7
|
7
17103-RSH-E00 Plate compSEALING |
17103-RSH-E00 |
US $13.30 |
||
|
8
|
8
17105-PWA-007 PackingINTAKE MANIFOLD |
17105-PWA-007 |
from US $7.28 |
||
|
9
|
9
17107-RNA-A01 PackingTHROTTLE BODY |
17107-RNA-A01 |
from US $10.36 |
||
|
10
|
10
17116-RNA-A00 PlateTHROTTLE FLANGE |
17116-RNA-A00 |
US $4.20 |
||
|
11
|
11
17132-PWA-000
Stay comp. a
|
17132-PWA-000 |
— | ||
|
12
|
12
17134-PWA-000
Stay assy. b
|
17134-PWA-000 |
— | ||
|
13
|
13
17145-PWA-000 PlateEGR |
17145-PWA-000 |
US $30.08 |
||
|
14
|
14
17146-PWA-004 GasketEGR PLATE |
17146-PWA-004 |
from US $16.77 |
||
|
15
|
15
17212-P2F-A00 RubberAIR CLEANER MOUNTING |
17212-P2F-A00 |
US $2.59 |
||
|
16
|
16
17216-P2F-A00 CollarAIR CLEANER MOUNTING |
17216-P2F-A00 |
US $2.10 |
||
|
17
|
17
32742-RSH-E00
Stay b
|
32742-RSH-E00 |
— | ||
|
18
|
18
37830-PNC-003 Map Sensor assyMAP |
37830-PNC-003 |
from US $145.18 |
||
|
19
|
19
37835-PGK-A01 O-ring |
37835-PGK-A01 |
from US $2.15 |
||
|
20
|
20
90001-PGM-000 Bolt-washerSPECIAL, 6X30 |
90001-PGM-000 |
US $1.33 |
||
|
21
|
21
91301-PLC-000 O-ring7.47X3.6 |
91301-PLC-000 |
from US $1.80 |
||
|
22
|
22
91301-PWA-003 O-ring6.6X2.4 (NOK) |
91301-PWA-003 |
US $1.19 |
||
|
23
|
23
91302-PNA-003 O-ring7.45X3.61(NOK) |
91302-PNA-003 |
from US $1.39 |
||
|
24
|
24
92900-06025-0B BoltSTUD, 6X25 |
92900-06025-0B |
from US $0.59 |
||
|
25
|
25
93401-080-500-8 Bolt-washer8X50 |
93401-080-500-8 |
US $0.81 |
||
|
26
|
26
93404-060-140-8 Bolt-washer6X14 |
93404-060-140-8 |
from US $0.52 |
||
|
27
|
27
93892-050-160-7 Screw-washer5X16 |
93892-050-160-7 |
from US $0.44 |
||
|
28
|
28
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
29
|
29
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
30
|
30
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
31
|
31
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
32
|
32
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
33
|
33
95701-100-220-8 BoltFLANGE, 10X22 |
95701-100-220-8 |
from US $0.81 |
