	Description	OEM Part #	Price
1	1 31500-SMG-E02 Battery assy	31500-SMG-E02	—
2	2 31512-SB0-900 Plate BATTERY SETTING	31512-SB0-900	US $8.40
3	3 31513-SP0-010 Bolt BATTERY SETTING (210MM)	31513-SP0-010	from US $3.03
4	4 31521-SMG-900 Box	31521-SMG-900	—
5	5 31531-SMG-000 Cover	31531-SMG-000	—
6	6 31542-SA5-666 Plug VENT (MF) (FURUKAWA)	31542-SA5-666	from US $2.59
7	7 32115-P64-003 Holder CORRUGATED (DARK BLUE) (10MM)	32115-P64-003	US $2.38
8	8 32132-P8C-A01 Holder HARNESS (DARK BLUE) (10MM)	32132-P8C-A01	US $4.62
9	9 32410-SMG-000 Cable assy STARTER	32410-SMG-000	US $88.32
10	10 32411-SMG-000 Bracket STARTER CABLE	32411-SMG-000	US $4.34
11	11 32413-SMG-N01 Cover STARTER CABLE TERMINAL	32413-SMG-N01	US $23.55
12	12 32415-SMG-E01 Nut M6	32415-SMG-E01	US $1.33
13	13 32416-SMG-E01 Bolt SQUARE(M6)	32416-SMG-E01	US $1.33
14	14 32418-SMG-E01 Terminal	32418-SMG-E01	—
15	15 32418-SMG-003 Cover, BATTERY TERMINAL	32418-SMG-003	US $10.42
16	16 32600-SMG-900 Cable assy	32600-SMG-900	—
17	17 32601-SK7-900 Bolt BATTERY TERMINAL	32601-SK7-900	from US $2.81
18	18 32602-SK7-900 Nut BATTERY TERMINAL	32602-SK7-900	from US $2
19	19 38210-SMG-E01 Terminal assy	38210-SMG-E01	—
20	20 90149-SE0-003 Bolt EARTH, 6X16	90149-SE0-003	from US $2.52
21	21 91531-S5B-003 Band HARNESS (BLACK) (120MM)	91531-S5B-003	US $3.58
22	22 91540-S0A-003 Clip HARNESS BAND(NATURAL) (96.9MM)	91540-S0A-003	from US $2.29
23	23 93401-060-120-8 Bolt-washer 6X12	93401-060-120-8	from US $0.52
24	24 94050-06080 Nut FLANGE, 6MM	94050-06080	from US $0.52
25	25 94070-06080 Nut-washer 6MM	94070-06080	from US $0.52
26	26 94070-08080 Nut-washer 8MM	94070-08080	from US $0.52
27	27 38216-SMG-003 Cap TERMINAL(406)	38216-SMG-003	US $2.03

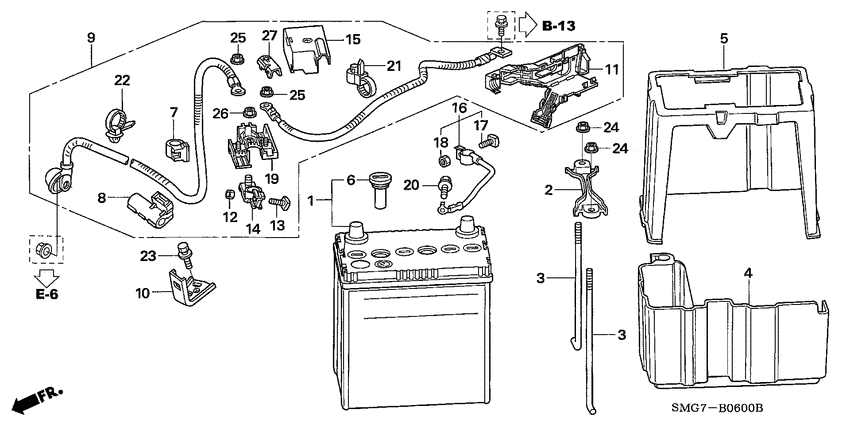

Battery (1.4L) Diagram Honda CIVIC General 7053074-540559

Battery (1.4L) Diagram Honda CIVIC General 7053074-540559
