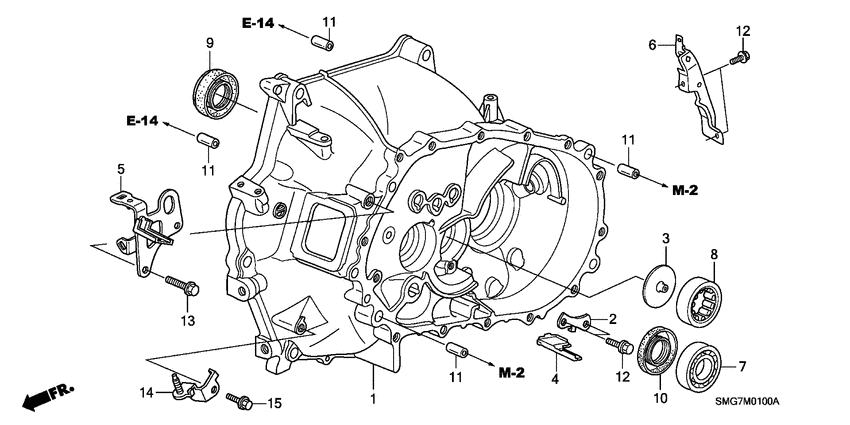

Clutch case (1.4L) Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 1.4 BASE
- area code
- KS
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-RPL-000
Case comp.
|
21000-RPL-000 |
— | ||
|
2
|
2
21101-RPL-000 PlateNEEDLE SET |
21101-RPL-000 |
US $4.62 |
||
|
3
|
3
21103-RPF-000 Plate cOIL GUIDE |
21103-RPF-000 |
US $2.17 |
||
|
4
|
4
21120-PWL-000 Magnet comp.TRANSMISSION |
21120-PWL-000 |
US $6.02 |
||
|
5
|
5
21220-RPF-000 Hanger comp.TRANSMISSION |
21220-RPF-000 |
US $5.04 |
||
|
6
|
6
32746-RSH-E00
Stay f
|
32746-RSH-E00 |
— | ||
|
7
|
7
91002-RPF-003 BearingSPECIAL BALL, 6305 |
91002-RPF-003 |
from US $12.05 |
||
|
8
|
8
91101-RPF-003 BearingNEEDLE, 34X59X20 |
91101-RPF-003 |
from US $20.94 |
||
|
9
|
9
91206-PX5-005 Oil seal40X58X8(NOK) |
91206-PX5-005 |
from US $7.65 |
||
|
10
|
10
91216-PHR-003 Oil seal26X40X7(NOK) |
91216-PHR-003 |
from US $5.86 |
||
|
11
|
11
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
12
|
12
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
13
|
13
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
