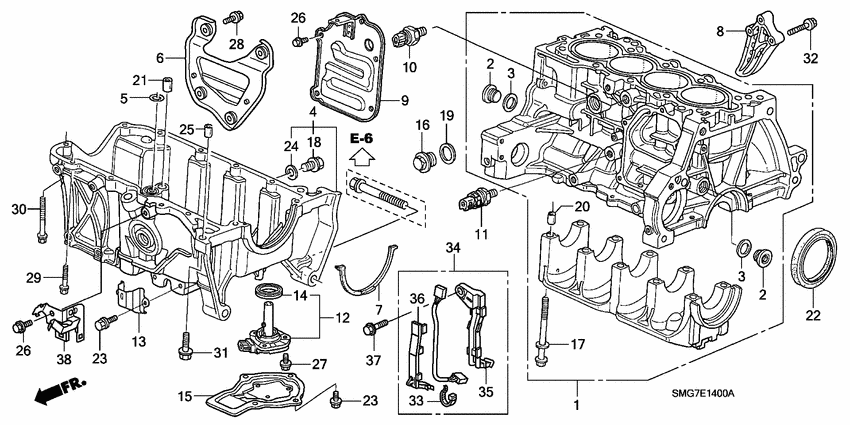

Cylinder block/oil pan (1.4L) Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 1.4 BASE
- area code
- KS
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-RSH-E00
Block assy
|
11000-RSH-E00 |
— | ||
|
2
|
2
11106-PWA-300 BoltSEALING, 24MM |
11106-PWA-300 |
from US $3.42 |
||
|
3
|
3
11107-PWA-300 WasherSEALING, 24MM |
11107-PWA-300 |
from US $1.48 |
||
|
4
|
4
11200-RSH-E02 Pan assyOIL |
11200-RSH-E02 |
US $341.76 |
||
|
5
|
5
11203-PWA-003 O-ring17.8X2.4 (NOK) |
11203-PWA-003 |
from US $1.70 |
||
|
6
|
6
11205-RSH-E00 CoverOIL PAN |
11205-RSH-E00 |
US $44.03 |
||
|
7
|
7
11252-PWA-000 PackingOIL PAN |
11252-PWA-000 |
from US $5.86 |
||
|
8
|
8
11299-RSH-E00 GuardENGINE UNDER |
11299-RSH-E00 |
US $70.40 |
||
|
9
|
9
11850-PWA-020 Cover comp.BREATHER 1001988 - |
11850-PWA-020 |
US $11.20 |
||
|
9
|
9
11850-PWA-010 Cover comp.BREATHER 00000000 - 1001987 |
11850-PWA-010 |
US $13.16 |
||
|
10
|
10
30530-RSH-004 Sensor compKNOCK |
30530-RSH-004 |
US $114.24 |
||
|
11
|
11
37241-RNA-A01 Switch assy, OIL PRESSUREOIL PRESSURE |
37241-RNA-A01 |
from US $33.05 |
||
|
12
|
12
37310-RSA-G01
Sensor assy
|
37310-RSA-G01 |
— | ||
|
13
|
13
37311-RSH-E01 CoverOIL LEVEL SENSOR (A) |
37311-RSH-E01 |
US $14.21 |
||
|
14
|
14
37312-RSA-G02 PackingOIL LEVEL SENSOR |
37312-RSA-G02 |
from US $4.44 |
||
|
15
|
15
37312-RSH-E01 CoverOIL LEVEL SENSOR (B) |
37312-RSH-E01 |
US $13.72 |
||
|
16
|
16
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
17
|
17
90008-PM0-003 Bolt-washer10X112 |
90008-PM0-003 |
US $5.04 |
||
|
18
|
18
90009-PY3-000 DRAIN PLUG BOLT, 14MM |
90009-PY3-000 |
from US $2.92 |
||
|
19
|
19
90401-PR4-000 WasherSEALING, 28MM |
90401-PR4-000 |
from US $1.89 |
||
|
20
|
20
90702-PE0-000 Dowel pin12X18 |
90702-PE0-000 |
from US $1.89 |
||
|
21
|
21
90705-PT0-000 Dowel pin16X22 |
90705-PT0-000 |
from US $1.48 |
||
|
22
|
22
91214-PWA-003 Oil seal80X98X10 (NOK) |
91214-PWA-003 |
from US $13.87 |
||
|
23
|
23
93403-060-140-5 Bolt-washer6X14 |
93403-060-140-5 |
US $0.59 |
||
|
24
|
24
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
25
|
25
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
27
|
27
95701-060-220-5 BoltFLANGE, 6X22 |
95701-060-220-5 |
US $0.59 |
||
|
28
|
28
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
29
|
29
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
30
|
30
95701-060-500-8 BoltFLANGE, 6X50 |
95701-060-500-8 |
from US $0.74 |
||
|
31
|
31
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
32
|
32
95701-100-650-8 BoltFLANGE, 10X65 |
95701-100-650-8 |
from US $1.18 |
||
|
33
|
33
32112-S2K-003 BandCABLE (90MM) |
32112-S2K-003 |
US $1.61 |
||
|
34
|
34
32116-RSH-E00
Sub harness
|
32116-RSH-E00 |
— | ||
|
35
|
35
32134-RSH-E01 Holder hENGINE WIRE HARNESS (LOWER) |
32134-RSH-E01 |
US $20.99 |
||
|
36
|
36
32144-RSH-E00 Holder hENGINE WIRE HARNESS (UPPER) |
32144-RSH-E00 |
US $16.13 |
||
|
37
|
37
90051-RGA-003 BoltSPECIAL, 6X20.8 |
90051-RGA-003 |
US $1.61 |
||
|
38
|
38
32747-RSH-E00
Stay g
|
32747-RSH-E00 |
— |
