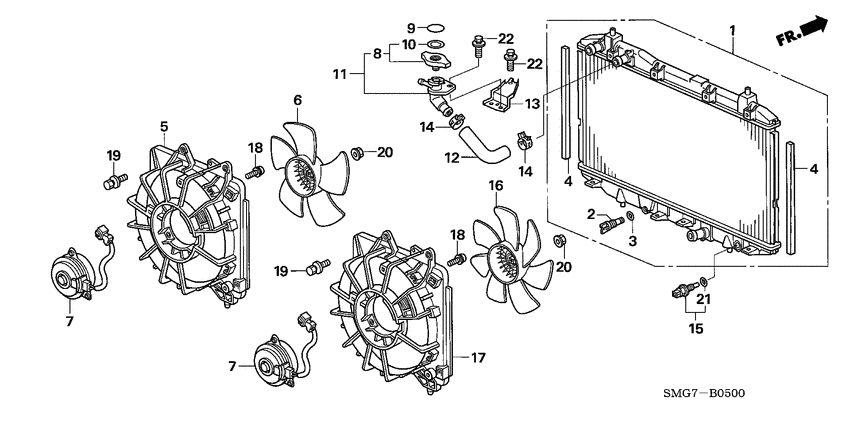

Radiator (1.4L) Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 1.4 BASE
- area code
- KS
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-RSH-E01
Radiator comp.
|
19010-RSH-E01 |
— | ||
|
2
|
2
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
from US $1.85 |
||
|
4
|
4
19013-RSH-E01
Seal
|
19013-RSH-E01 |
— | ||
|
5
|
5
19015-RSH-E01
Shroud comp.
|
19015-RSH-E01 |
— | ||
|
6
|
6
19020-RSH-E01 FanCOOLING(DENSO) |
19020-RSH-E01 |
US $34.82 |
||
|
7
|
7
19030-RSH-E01
Motor
|
19030-RSH-E01 |
— | ||
|
8
|
8
19045-RAA-003 Cap comp.RADIATOR (DENSO) |
19045-RAA-003 |
from US $17.50 |
||
|
10
|
10
19046-RAA-A00 LabelRADIATOR CAP |
19046-RAA-A00 |
from US $1.47 |
||
|
11
|
11
19050-RSH-E01
Filler assy.
|
19050-RSH-E01 |
— | ||
|
12
|
12
19051-RSH-E00
Hose
|
19051-RSH-E00 |
— | ||
|
13
|
13
19052-RSH-E00 Bracket comp.WATER FILLER |
19052-RSH-E00 |
US $5.88 |
||
|
14
|
14
19511-679-003 ClipWATER HOSE |
19511-679-003 |
from US $5.03 |
||
|
15
|
15
37870-RAA-A01 Sensor assyWATER TEMP (PANASONIC) |
37870-RAA-A01 |
US $43.56 |
||
|
16
|
16
38611-RSH-E01
Fan
|
38611-RSH-E01 |
— | ||
|
17
|
17
38615-RSH-E01
Shroud comp.
|
38615-RSH-E01 |
— | ||
|
18
|
18
90041-P3G-003 Screw-washer5X11 |
90041-P3G-003 |
US $1.41 |
||
|
19
|
19
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
20
|
20
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
21
|
21
91307-PLC-004 O-ring9.5X1.9 (MATSUSHITA) |
91307-PLC-004 |
from US $1.63 |
||
|
22
|
22
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
