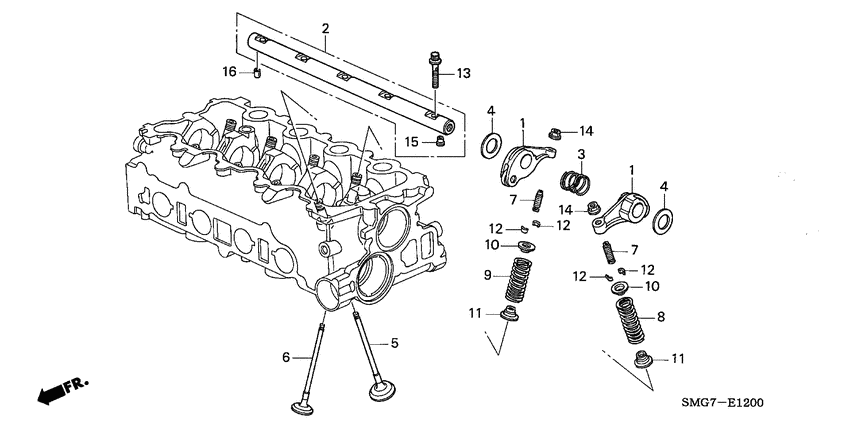

Valve/rocker arm (1.4L) Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 1.4 BASE
- area code
- KS
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14621-PWA-000 Arm compROCKER |
14621-PWA-000 |
US $20.74 |
||
|
2
|
2
14631-PWA-000
Shaft comp.
|
14631-PWA-000 |
— | ||
|
3
|
3
14645-PWA-000
Spring
|
14645-PWA-000 |
— | ||
|
4
|
4
14647-PWA-000 WasherTHRUST |
14647-PWA-000 |
US $6.17 |
||
|
5
|
5
14711-PWA-000
Valve
|
14711-PWA-000 |
— | ||
|
6
|
6
14721-PWA-000
Valve
|
14721-PWA-000 |
— | ||
|
7
|
7
14744-PM3-000 ScrewTAPPET ADJUSTING |
14744-PM3-000 |
from US $3.03 |
||
|
8
|
8
14761-RSH-E01
Spring
|
14761-RSH-E01 |
— | ||
|
9
|
9
14762-PWA-017
Spring
|
14762-PWA-017 |
— | ||
|
9
|
9
14762-PWA-014
Spring
|
14762-PWA-014 |
— | ||
|
10
|
10
14765-RGA-000 RetainerVALVE SPRING |
14765-RGA-000 |
from US $2.10 |
||
|
11
|
11
14775-P08-000 SeatVALVE SPRING |
14775-P08-000 |
from US $2.22 |
||
|
12
|
12
14781-PRB-A02 CotterVALVE (SERVICE) |
14781-PRB-A02 |
from US $2.41 |
||
|
13
|
13
90006-PWA-003 BoltROCKER ARM SHAFT |
90006-PWA-003 |
from US $3.08 |
||
|
14
|
14
90206-PM3-004 NutTAPPET ADJUSTING (TOKAI TRW) |
90206-PM3-004 |
from US $1.63 |
||
|
15
|
15
90719-PWA-000 Dowel pin7-10X10 |
90719-PWA-000 |
US $2.17 |
||
|
16
|
16
94301-07120 Pin aDOWEL, 7X12 |
94301-07120 |
from US $0.89 |
