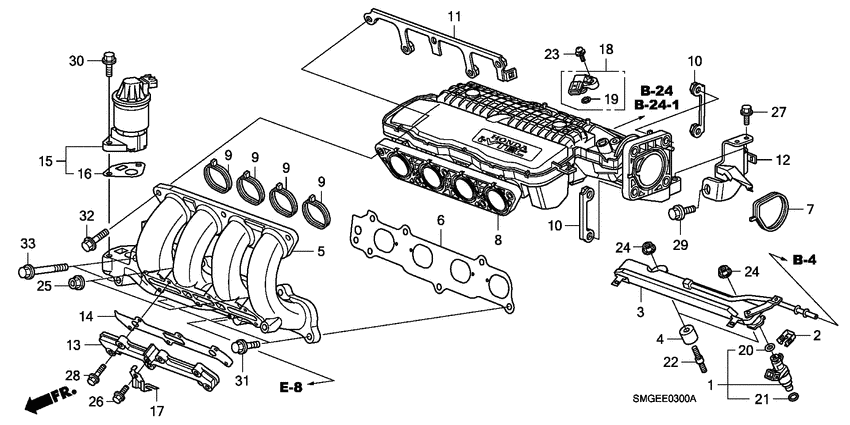

Intake manifold (1.4L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- IMT
- Number of doors
- 5
- grade
- 1.4SE
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16450-RB0-003 Injector assyFUEL |
16450-RB0-003 |
US $161.57 |
||
|
2
|
2
16451-PLC-000 ClipINJECTOR |
16451-PLC-000 |
from US $3.64 |
||
|
3
|
3
16620-RB0-003 Pipe compFUEL |
16620-RB0-003 |
US $74.88 |
||
|
4
|
4
16638-PT2-000 InsulatorFUEL PIPE |
16638-PT2-000 |
US $3.71 |
||
|
5
|
5
17100-RB0-000 Manifold compINTAKE |
17100-RB0-000 |
US $243.20 |
||
|
6
|
6
17105-RB0-004 GasketINTAKE MANIFOLD |
17105-RB0-004 |
from US $15.23 |
||
|
7
|
7
17107-RB0-007 PackingTHROTTLE BODY |
17107-RB0-007 |
US $28.02 |
||
|
8
|
8
17110-RB0-000 Chamber compINTAKE MANIFOLD |
17110-RB0-000 |
US $148.48 |
||
|
9
|
9
17115-RB0-007 PackingINTAKE PORT |
17115-RB0-007 |
US $9.32 |
||
|
10
|
10
17116-RB0-000 PlateTHROTTLE FLANGE |
17116-RB0-000 |
US $4.62 |
||
|
11
|
11
17117-RB0-000 PlateINTAKE MANIFOLD FLANGE |
17117-RB0-000 |
US $7.56 |
||
|
12
|
12
17132-RB0-000
Stay comp. a
|
17132-RB0-000 |
— | ||
|
13
|
13
17145-RB0-000 CoverEGR CHAMBER |
17145-RB0-000 |
US $25.86 |
||
|
14
|
14
17146-RB0-004 GasketEGR CHAMBER COVER |
17146-RB0-004 |
US $13.44 |
||
|
15
|
15
18011-RB0-000
Valve set
|
18011-RB0-000 |
— | ||
|
16
|
16
18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) |
18715-PB2-000 |
from US $6.51 |
||
|
17
|
17
32741-RB0-000
Stay
|
32741-RB0-000 |
— | ||
|
18
|
18
37830-RNA-A01 Sensor assyMAP |
37830-RNA-A01 |
from US $100.42 |
||
|
19
|
19
37835-PGK-A01 O-ring |
37835-PGK-A01 |
from US $2.15 |
||
|
20
|
20
91301-PLC-000 O-ring7.47X3.6 |
91301-PLC-000 |
from US $1.80 |
||
|
21
|
21
91302-PNA-003 O-ring7.45X3.61(NOK) |
91302-PNA-003 |
from US $1.39 |
||
|
22
|
22
92900-06032-0B BoltSTUD, 6X32 |
92900-06032-0B |
from US $0.74 |
||
| replacement | |||||
|
22
|
22
92900-06032-0E Bolt 2, stud (6x32) |
92900-06032-0E |
from US $0.89 |
||
|
23
|
23
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
27
|
27
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
28
|
28
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
29
|
29
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
30
|
30
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
|
31
|
31
95701-080-300-8 BoltFLANGE, 8X30 |
95701-080-300-8 |
from US $0.74 |
||
|
32
|
32
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
33
|
33
95701-081-000-8 BoltFLANGE, 8X100 |
95701-081-000-8 |
from US $1.18 |
||
