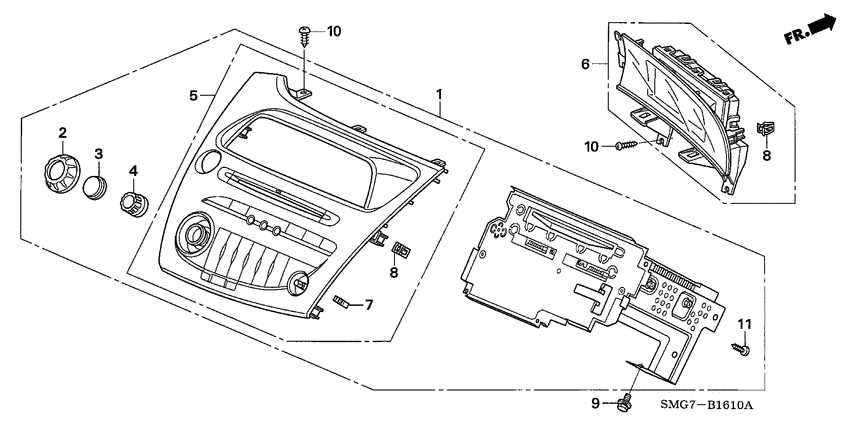

Auto radio (LH; 1) Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 1.8 COMFORT
- area code
- KS
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39100-SMG-G01
Tuner assy
|
39100-SMG-G01 |
— | ||
|
2
|
2
39103-SMG-E01 KnobVOLUME |
39103-SMG-E01 |
US $15.87 |
||
|
3
|
3
39104-SMG-E01 ButtonPOWER |
39104-SMG-E01 |
US $14.34 |
||
|
4
|
4
39105-SMG-E01 KnobTUNER & FOLDER |
39105-SMG-E01 |
US $14.34 |
||
|
5
|
5
39106-SMG-G01
Panel assy.
|
39106-SMG-G01 |
— | ||
|
6
|
6
39710-SMG-G01
Display assy
|
39710-SMG-G01 |
— | ||
|
7
|
7
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
8
|
8
90666-SMG-E01 ClipSNAP FIT |
90666-SMG-E01 |
US $3.43 |
||
|
9
|
9
91551-SE0-003 BoltFLANGE, 5X7 |
91551-SE0-003 |
US $0.84 |
||
|
10
|
10
93903-14520 ScrewTAPPING, 4X20 |
93903-14520 |
from US $0.37 |
||
|
11
|
11
39107-SMG-E01 ScrewTAPPING(M3X8) |
39107-SMG-E01 |
US $1.47 |
