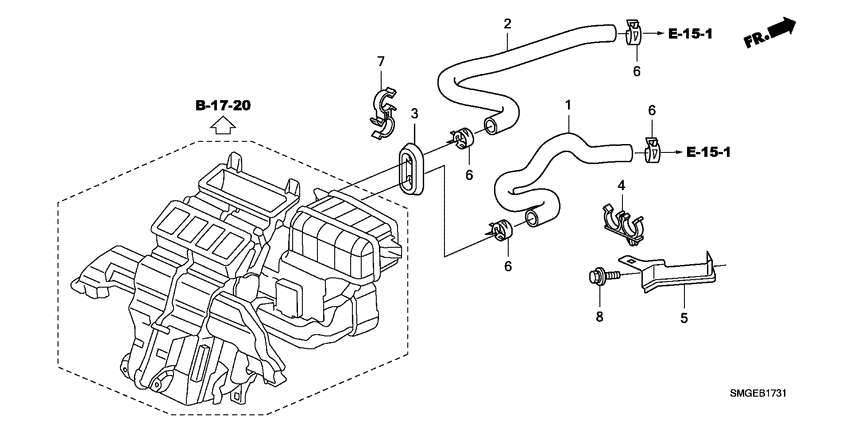

Water hose (LH; 1.8L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- 5AT
- Number of doors
- 5
- grade
- 1.8EXE
- area code
- KR
- left-hand drive
- +
- glass roof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79721-SMG-G00
Hose
|
79721-SMG-G00 |
— | ||
|
2
|
2
79725-SMG-G00
Hose
|
79725-SMG-G00 |
— | ||
|
3
|
3
79731-SMG-E00 GrommetHEATER PIPE |
79731-SMG-E00 |
US $4.62 |
||
|
4
|
4
79746-S5A-003 ClampHEATER HOSE (NATURAL) |
79746-S5A-003 |
US $3.02 |
||
|
5
|
5
79751-SNA-A00
Stay
|
79751-SNA-A00 |
— | ||
|
6
|
6
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
6
|
6
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
7
|
7
91551-SD5-003 ClampHEATER |
91551-SD5-003 |
from US $1.82 |
||
|
8
|
8
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
