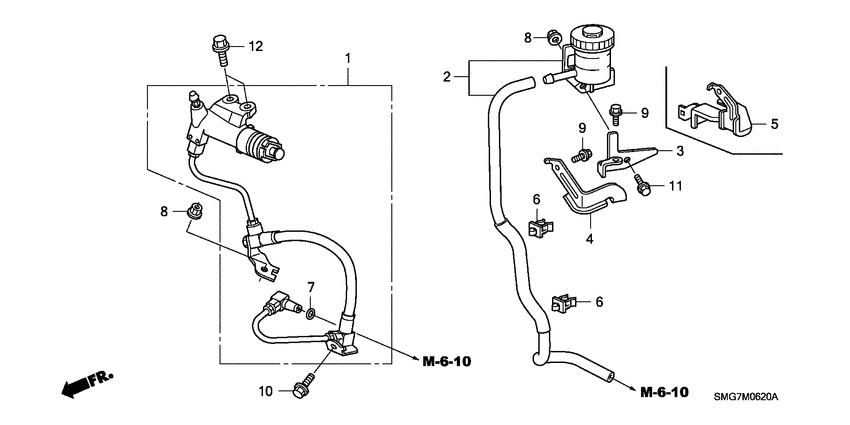

Clutch pipe (I-SHIFT) Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- IMT
- Number of doors
- 5
- grade
- 1.8 EX
- area code
- KE
- right-hand drive
- +
- navigation
- +
- vehicle stability assist
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46960-RPK-L02
Pipe comp
|
46960-RPK-L02 |
— | ||
|
2
|
2
46970-RPJ-L01
Tube assy
|
46970-RPJ-L01 |
— | ||
|
3
|
3
46972-RPK-000
Stay comp
|
46972-RPK-000 |
— | ||
|
4
|
4
46973-RPJ-000
Stay comp
|
46973-RPJ-000 |
— | ||
|
6
|
6
46991-RPK-003
Clamp
|
46991-RPK-003 |
— | ||
|
7
|
7
91301-RPK-L01
O-ring
|
91301-RPK-L01 |
— | ||
|
8
|
8
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
9
|
9
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
10
|
10
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
11
|
11
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
12
|
12
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
