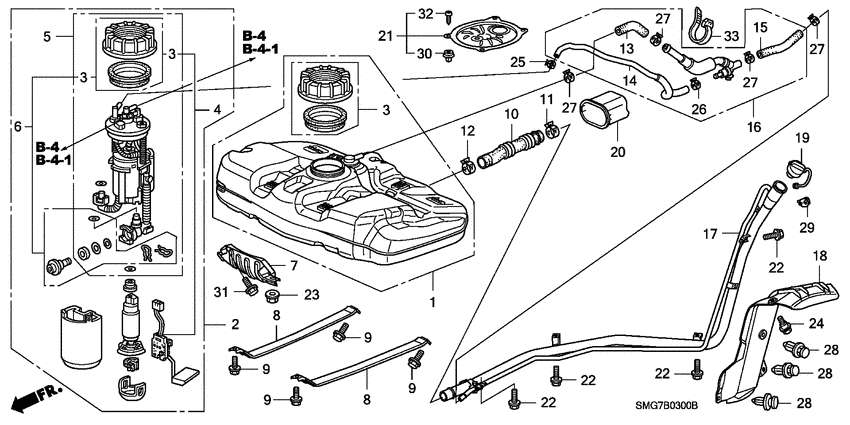

Fuel tank (1.4L; 1.8L) Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- IMT
- Number of doors
- 5
- grade
- 1.8 EX
- area code
- KE
- right-hand drive
- +
- navigation
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17044-SMG-E01
Tank set
|
17044-SMG-E01 |
— | ||
|
2
|
2
17045-SMG-E01
Module assy.
|
17045-SMG-E01 |
— | ||
|
3
|
3
17046-SMG-E00 Nut & packing setFUEL LOCK |
17046-SMG-E00 |
US $24.96 |
||
|
4
|
4
17047-SMG-E01 Meter comp |
17047-SMG-E01 |
US $91.52 |
||
|
5
|
5
17048-SMG-E00
Strainer set
|
17048-SMG-E00 |
— | ||
|
6
|
6
17052-SMG-E00
Regulator assy
|
17052-SMG-E00 |
— | ||
|
7
|
7
17518-SMG-E00 ProtectorFUEL TANK |
17518-SMG-E00 |
US $46.85 |
||
|
8
|
8
17521-SMG-E00 Band compFUEL TANK MOUNTING |
17521-SMG-E00 |
US $38.78 |
||
|
9
|
9
17525-S0X-A00 Bolt-washer10X25 |
17525-S0X-A00 |
US $1.75 |
||
|
10
|
10
17651-SMG-E01
Tube
|
17651-SMG-E01 |
— | ||
|
11
|
11
17652-SDA-A31 ClipFILLER TUBE |
17652-SDA-A31 |
US $2.87 |
||
|
12
|
12
17652-SEL-003 ClipFILLER TUBE (39MM) |
17652-SEL-003 |
US $3.01 |
||
|
13
|
13
17653-SMG-E01
Tube a
|
17653-SMG-E01 |
— | ||
|
14
|
14
17655-SMG-E02
Tube
|
17655-SMG-E02 |
— | ||
|
15
|
15
17656-SMG-E01
Tube b
|
17656-SMG-E01 |
— | ||
|
16
|
16
17659-SMG-E02
Tube assy
|
17659-SMG-E02 |
— | ||
|
17
|
17
17660-SMG-E02 Pipe compFUEL FILLER |
17660-SMG-E02 |
US $225.28 |
||
|
18
|
18
17668-SMG-E01 CoverFUEL FILLER PIPE |
17668-SMG-E01 |
US $23.55 |
||
|
19
|
19
17670-SJA-013
Cap comp. FUEL FILLER
|
17670-SJA-013 |
— | ||
| replacement | |||||
|
19
|
19
17670-T3W-003 CAP, FUEL FILLER |
17670-T3W-003 |
from US $40.39 |
||
|
20
|
20
74615-SMG-E01 ProtectorFILLER NECK |
74615-SMG-E01 |
US $12.18 |
||
|
21
|
21
74660-SMG-E01 Cap assy.FUEL MAINTENANCE HOLE |
74660-SMG-E01 |
US $14 |
||
|
22
|
22
90150-S04-003 BoltEARTH, 6X16 |
90150-S04-003 |
US $1.88 |
||
|
23
|
23
90361-S3Y-003 NutPAINT CUTTING, 8MM |
90361-S3Y-003 |
US $1.19 |
||
|
24
|
24
90671-SB2-000 BoltFR. FENDER (DACRO COATING) |
90671-SB2-000 |
US $3.29 |
||
|
25
|
25
91404-SDC-000 ClampTUBE (D10) |
91404-SDC-000 |
US $1.33 |
||
|
26
|
26
91414-SEL-003 ClampTUBE (D11.5) |
91414-SEL-003 |
US $1.61 |
||
|
27
|
27
91417-SZ3-003 ClampFUEL TUBE (D20) (CHUO HATSUJO) |
91417-SZ3-003 |
from US $2.93 |
||
|
28
|
28
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
29
|
29
91593-SMG-E11 ClipFILLER CAP |
91593-SMG-E11 |
US $2.87 |
||
|
30
|
30
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
31
|
31
93405-080-160-4 Bolt-washer8X16 (DACRO COATING) |
93405-080-160-4 |
US $0.74 |
||
|
32
|
32
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
33
|
33
17496-SMG-E00 Band |
17496-SMG-E00 |
US $2.10 |
||
