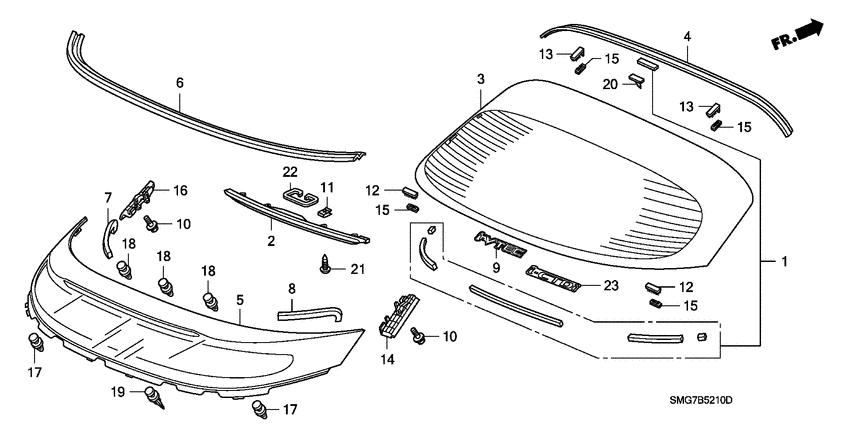

Rear windshield Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- IMT
- Number of doors
- 5
- grade
- 1.8 VXI
- area code
- KN
- right-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04733-SMG-E01
Rubber set
|
04733-SMG-E01 |
— | ||
|
2
|
2
34270-SMG-E01
Light assy
|
34270-SMG-E01 |
— | ||
|
3
|
3
73211-SMG-E11
Glass set
|
73211-SMG-E11 |
— | ||
|
4
|
4
73229-SMG-E00 SealRR. WINDSHIELD UPPER |
73229-SMG-E00 |
US $32.26 |
||
|
5
|
5
73711-SMG-E02
Window set
|
73711-SMG-E02 |
— | ||
|
6
|
6
73725-SMG-E01 Seal |
73725-SMG-E01 |
US $144.23 |
||
|
9
|
9
75717-SNB-E01 StickerI-VTEC |
75717-SNB-E01 |
US $13.84 |
||
|
10
|
10
90105-SMT-E10 Bolt-washer8X12 |
90105-SMT-E10 |
US $3.22 |
||
|
11
|
11
90308-SB2-013 NutSUSPENSION, 5MM |
90308-SB2-013 |
from US $2.45 |
||
|
12
|
12
91501-S70-003 Fastener bWINDSHIELD |
91501-S70-003 |
from US $2.21 |
||
|
13
|
13
91502-S70-003 Fastener bRR. WINDSHIELD |
91502-S70-003 |
from US $3.58 |
||
|
14
|
14
91512-SMG-E11
Clip
|
91512-SMG-E11 |
— | ||
|
15
|
15
91536-SS0-J01 Fastener aWINDSHIELD |
91536-SS0-J01 |
from US $1.93 |
||
|
16
|
16
91552-SMG-E11
Clip
|
91552-SMG-E11 |
— | ||
|
17
|
17
91560-SMG-E01 Clip AEXTRA WINDOW |
91560-SMG-E01 |
US $1.68 |
||
|
18
|
18
91560-SZ3-003 Clip, DOOR LINING (NATURAL) |
91560-SZ3-003 |
US $2.28 |
||
|
19
|
19
91561-SMG-E01 Clip bEXTRA WINDOW |
91561-SMG-E01 |
US $2.03 |
||
|
21
|
21
90130-SMG-E01 ScrewTAPPING, 5X13 |
90130-SMG-E01 |
US $1.75 |
||
|
22
|
22
34271-SMG-E00
Seal
|
34271-SMG-E00 |
— |
