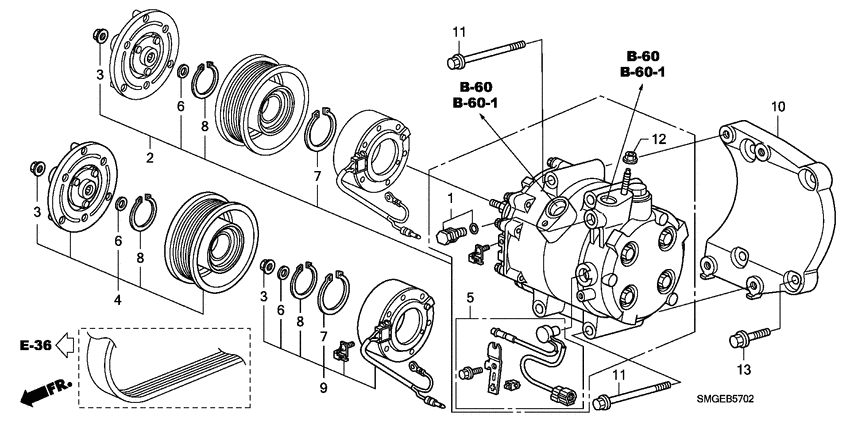

Air conditioner (COMPRESSOR; DIESEL) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 2.2SPR
- area code
- KG
- left-hand drive
- +
- navigation
- +
- dpf
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-PDF-E02
Valve sub assy.
|
38801-PDF-E02 |
— | ||
|
2
|
2
38810-RSR-E02
Compressor comp.
|
38810-RSR-E02 |
— | ||
|
3
|
3
38829-PDF-E02 Nut9MM |
38829-PDF-E02 |
US $1.61 |
||
|
4
|
4
38900-RNA-A01
Clutch set
|
38900-RNA-A01 |
— | ||
| replacement | |||||
|
4
|
4
38900-RNC-Z51 Clutch setCOMPRESSOR |
38900-RNC-Z51 |
US $294.71 |
||
|
5
|
5
38908-RSR-E02
Protector set
|
38908-RSR-E02 |
— | ||
|
6
|
6
38912-PE1-702 Shim set |
38912-PE1-702 |
US $3.74 |
||
|
7
|
7
38913-PP4-E02 RingSNAP |
38913-PP4-E02 |
US $3.36 |
||
|
8
|
8
38914-P07-004 Ring fSNAP |
38914-P07-004 |
US $1.89 |
||
|
9
|
9
38924-RSR-E01
Coil set
|
38924-RSR-E01 |
— | ||
|
10
|
10
38930-RSR-E10
Bracket
|
38930-RSR-E10 |
— | ||
|
11
|
11
90023-PNA-000 BoltFLANGE, 8X80 |
90023-PNA-000 |
US $1.89 |
||
|
12
|
12
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
13
|
13
95801-100-400-8 BoltFLANGE, 10X40 |
95801-100-400-8 |
from US $0.81 |
||
