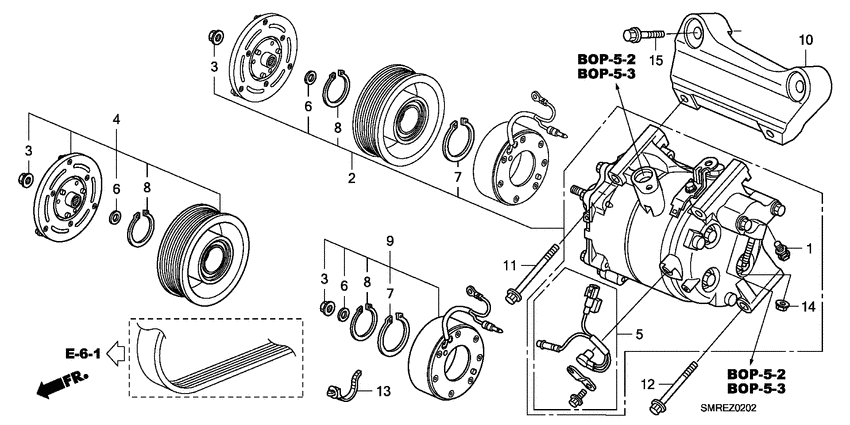

Air conditioner (COMPRESSOR; 2.0L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE-R
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-PHM-004
Valve sub assy.
|
38801-PHM-004 |
— | ||
|
2
|
2
38810-RSP-E01 Compressor comp. |
38810-RSP-E01 |
US $806.40 |
||
|
3
|
3
38829-PDF-E02 Nut9MM |
38829-PDF-E02 |
US $1.61 |
||
|
4
|
4
38900-RRB-A01 Clutch set, COMPRESSOR |
38900-RRB-A01 |
US $209.92 |
||
|
5
|
5
38908-RRH-004 Protector setTHERMAL |
38908-RRH-004 |
US $61.40 |
||
|
6
|
6
38912-PE1-702 Shim set |
38912-PE1-702 |
US $3.74 |
||
|
7
|
7
38913-PP4-E02 RingSNAP |
38913-PP4-E02 |
US $3.36 |
||
|
8
|
8
38914-P07-004 Ring fSNAP |
38914-P07-004 |
US $1.89 |
||
|
9
|
9
38924-RNA-A01 Coil setFIELD |
38924-RNA-A01 |
from US $110 |
||
|
10
|
10
38930-PNC-000 BracketCOMPRESSOR |
38930-PNC-000 |
US $25.86 |
||
|
10
|
10
38930-PNA-000 BracketCOMPRESSOR |
38930-PNA-000 |
US $23.55 |
||
|
11
|
11
90023-PNA-000 BoltFLANGE, 8X80 |
90023-PNA-000 |
US $1.89 |
||
|
12
|
12
90024-PNA-000 BoltFLANGE, 8X65 |
90024-PNA-000 |
US $1.89 |
||
|
13
|
13
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
14
|
14
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
15
|
15
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
