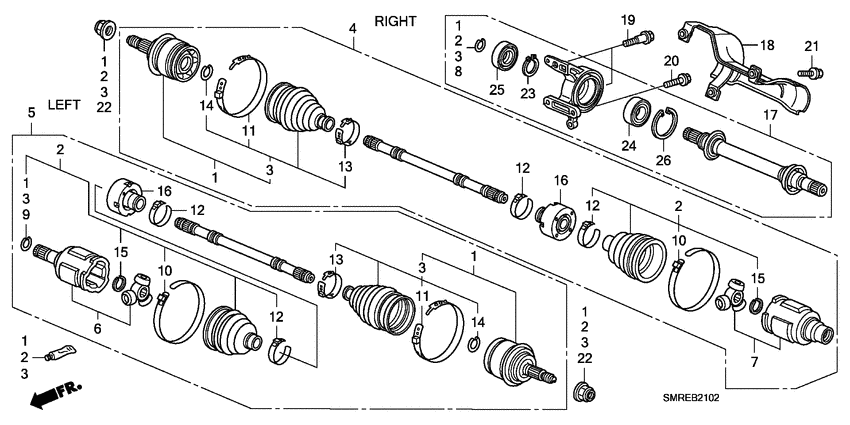

Front driveshaft/ half shaft (2.0L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE-R
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44014-SMT-G01 Joint setOUTBOARD |
44014-SMT-G01 |
US $289.28 |
||
|
2
|
2
44017-S3X-000
Boot set
|
44017-S3X-000 |
— | ||
| replacement | |||||
|
2
|
2
44017-S3X-010 Boot set |
44017-S3X-010 |
US $80.04 |
||
|
3
|
3
44018-S9A-010 Boot setOUTBOARD |
44018-S9A-010 |
US $64.64 |
||
|
4
|
4
44305-SMT-G01 Driveshaft assy.R. |
44305-SMT-G01 |
US $632.32 |
||
|
5
|
5
44306-SMT-G00 Driveshaft assy.L. |
44306-SMT-G00 |
US $632.32 |
||
|
6
|
6
44310-SMT-G00
Joint comp
|
44310-SMT-G00 |
— | ||
|
7
|
7
44310-SWA-305
Joint set
|
44310-SWA-305 |
— | ||
| replacement | |||||
|
7
|
7
44310-SWA-306 SETJOINT COMP IN |
44310-SWA-306 |
US $492.32 |
||
|
8
|
8
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44319-S0A-300 Set ring28X2.0 |
44319-S0A-300 |
from US $2.21 |
||
| replacement | |||||
|
9
|
9
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
10
|
10
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
11
|
11
44327-SX0-C02 BandOUTBOARD BOOT (NIPPON HATSUJO) |
44327-SX0-C02 |
US $7.98 |
||
|
12
|
12
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
13
|
13
44329-SX0-C02 BandDRIVESHAFT (NIPPON HATSUJO) |
44329-SX0-C02 |
US $6.19 |
||
|
14
|
14
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
US $1.75 |
||
|
15
|
15
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
16
|
16
44351-SMT-G01 DamperDYNAMIC |
44351-SMT-G01 |
US $19.33 |
||
|
17
|
17
44500-SCV-A00
Shaft assy
|
44500-SCV-A00 |
— | ||
|
18
|
18
44517-SMT-G00 Cover comp.HEAT |
44517-SMT-G00 |
US $50.18 |
||
|
19
|
19
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
20
|
20
90165-SE0-000
Bolt
|
90165-SE0-000 |
— | ||
|
21
|
21
90165-S5B-003 BoltFLANGE, 8X24 |
90165-S5B-003 |
US $1.61 |
||
|
22
|
22
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
from US $6.35 |
||
|
23
|
23
90681-SR3-000 CirclipEXTERNAL, 33MM |
90681-SR3-000 |
from US $2.66 |
||
|
24
|
24
91057-SR3-008 BearingHALF SHAFT(NTN) |
91057-SR3-008 |
from US $14.65 |
||
|
25
|
25
91260-SDB-A01 SealHALF SHAFT OUTER(NOK) |
91260-SDB-A01 |
from US $7.49 |
||
|
26
|
26
94520-55000 CirclipINTERNAL, 55MM |
94520-55000 |
from US $1.48 |
||
