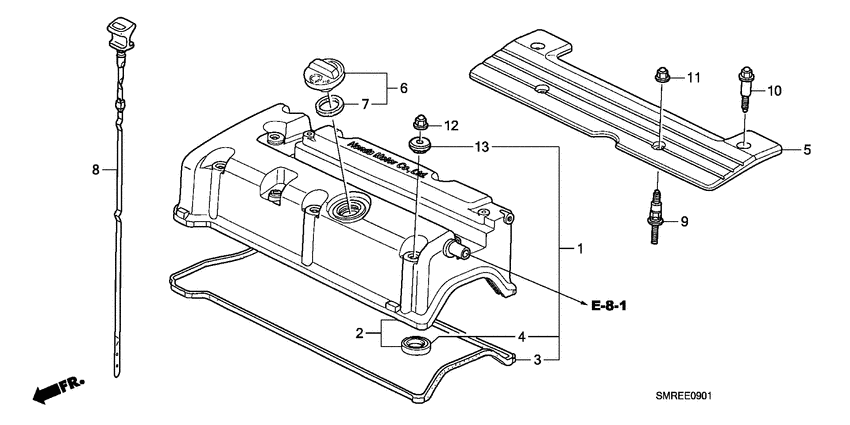

Cylinder head cover (2.0L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE-R P
- area code
- KE
- right-hand drive
- +
- side curtain srs
- +
- lsd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-RTA-000 Packing setHEAD COVER |
12030-RTA-000 |
from US $71.51 |
||
|
2
|
2
12310-RSP-000 Cover comp.CYLINDER HEAD |
12310-RSP-000 |
US $270.78 |
||
|
3
|
3
12341-RTA-000 PackingCYLINDER HEAD COVER |
12341-RTA-000 |
from US $18 |
||
|
4
|
4
12342-PCX-004 SealSPARK PLUG TUBE (NOK) |
12342-PCX-004 |
from US $5.18 |
||
|
5
|
5
12500-PRC-030 Cover comp.PLUG HOLE COIL |
12500-PRC-030 |
US $49.15 |
||
|
6
|
6
15610-RGA-000 Cap assy.OIL FILLER |
15610-RGA-000 |
from US $9.49 |
||
|
7
|
7
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $3.55 |
||
|
8
|
8
15650-RSP-004 Gauge comp.OIL LEVEL |
15650-RSP-004 |
US $11.34 |
||
|
9
|
9
90013-PNC-010 Bolt aPLUG HOLE COIL COVER |
90013-PNC-010 |
from US $3.67 |
||
|
10
|
10
90014-RBC-000 Bolt bPLUG HOLE COIL COVER |
90014-RBC-000 |
US $4.62 |
||
|
11
|
11
90207-RBC-000 NutCAP, 6MM |
90207-RBC-000 |
US $1.32 |
||
|
12
|
12
90213-PH3-000 NutCAP, 6MM |
90213-PH3-000 |
from US $2.12 |
||
|
13
|
13
90441-PNA-010 WasherHEAD COVER |
90441-PNA-010 |
from US $5.29 |
