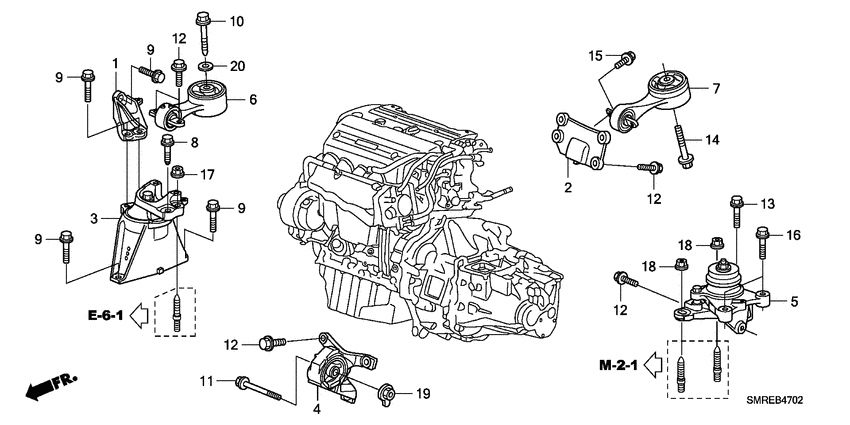

Engine mounts (2.0L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE-R P
- area code
- KE
- right-hand drive
- +
- side curtain srs
- +
- lsd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50625-SMT-E01
Stay
|
50625-SMT-E01 |
— | ||
|
2
|
2
50690-SMT-E00 BracketTORQUE ROD LOWER |
50690-SMT-E00 |
US $85.76 |
||
|
3
|
3
50820-SMT-E04
Rubber assy.
|
50820-SMT-E04 |
— | ||
|
4
|
4
50830-SVB-A01 MountingFR. ENGINE |
50830-SVB-A01 |
US $184.01 |
||
|
5
|
5
50850-SMT-E02 Rubber assy.TRANSMISSION MOUNTING |
50850-SMT-E02 |
US $658.24 |
||
|
6
|
6
50880-SMT-E02 RodUPPER TORQUE |
50880-SMT-E02 |
US $367.36 |
||
|
7
|
7
50890-SMT-E02 RodLOWER TORQUE |
50890-SMT-E02 |
US $739.02 |
||
|
8
|
8
90160-SVB-A00 BoltFLANGE, 14X47 |
90160-SVB-A00 |
US $4.65 |
||
|
9
|
9
90165-SDA-A00 BoltFLANGE, 12X45 |
90165-SDA-A00 |
US $2.22 |
||
|
10
|
10
90165-S04-000 BoltFLANGE, 12X97 |
90165-S04-000 |
US $5.18 |
||
|
11
|
11
90167-S5A-010 BoltFLANGE, 12X88 |
90167-S5A-010 |
US $4.80 |
||
|
12
|
12
90168-S5A-000 BoltFLANGE, 12X35 |
90168-S5A-000 |
from US $2.22 |
||
|
13
|
13
90170-SMT-E00 BoltFLANGE, 12X70 |
90170-SMT-E00 |
US $5.74 |
||
|
14
|
14
90180-SMG-E00 BoltFLANGE, 14X108 |
90180-SMG-E00 |
US $6.02 |
||
|
15
|
15
90182-SMG-E01 BoltFLANGE, 12X38 |
90182-SMG-E01 |
US $2.10 |
||
|
16
|
16
90190-SR3-000 BoltFLANGE, 12X64 |
90190-SR3-000 |
US $4.28 |
||
|
17
|
17
90213-S5A-003 NutFLANGE, 14MM |
90213-S5A-003 |
US $2.37 |
||
|
18
|
18
90371-SEF-000 NutFLANGE, 12MM |
90371-SEF-000 |
US $1.72 |
||
|
19
|
19
90371-S5A-000 NutYOKE, 12MM |
90371-S5A-000 |
US $4.56 |
||
|
20
|
20
90553-SL4-000
Washer
|
90553-SL4-000 |
— |
