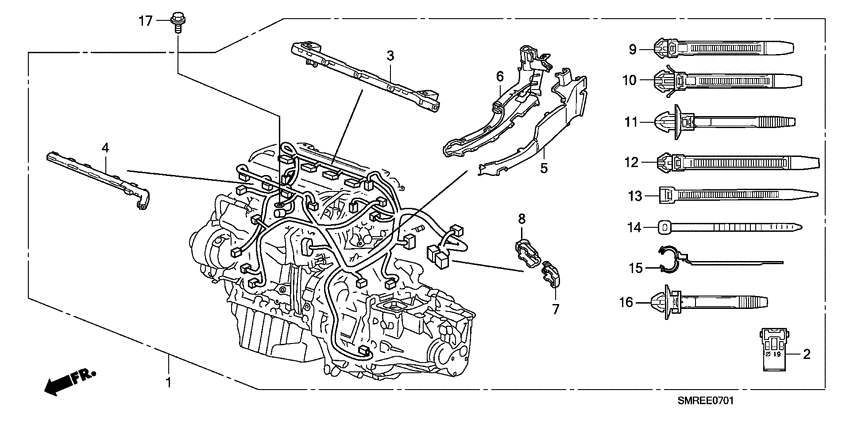

Engine wire harness (2.0L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE-R P
- area code
- KE
- right-hand drive
- +
- side curtain srs
- +
- lsd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32110-RSP-G00 HarnessENGINE WIRE |
32110-RSP-G00 |
US $497.92 |
||
|
2
|
2
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
3
|
3
32121-RTA-300 HolderENGINE HARNESS PLUG HOLE COIL |
32121-RTA-300 |
US $8.26 |
||
|
4
|
4
32123-RFE-000 HolderENGINE HARNESS INJECTOR |
32123-RFE-000 |
US $8.26 |
||
|
5
|
5
32126-RTA-300 CoverENGINE HARNESS MAIN |
32126-RTA-300 |
US $6.44 |
||
|
6
|
6
32127-RTA-300 HolderENGINE HARNESS MAIN |
32127-RTA-300 |
US $10.92 |
||
|
7
|
7
32128-RTA-003 CoverENGINE CONTROL MODULE COUPLER (A,B) |
32128-RTA-003 |
US $2.87 |
||
|
8
|
8
32129-RTA-003 CoverENGINE CONTROL MODULE COUPLER (C) |
32129-RTA-003 |
US $3.57 |
||
|
9
|
9
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
10
|
10
91507-RTA-003 Clip bHARNESS BAND (DARK GREEN) (129.4MM) |
91507-RTA-003 |
from US $2.31 |
||
|
11
|
11
91507-SL9-003 ClipWIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
91507-SL9-003 |
from US $1.68 |
||
|
12
|
12
91510-RAA-A01 Clip eHARNESS BAND (DARK GRAY) (179.4MM) |
91510-RAA-A01 |
US $2.31 |
||
|
13
|
13
91551-PNA-003 BandWIRE HARNESS (BLACK) (172MM) |
91551-PNA-003 |
from US $1.61 |
||
|
14
|
14
91556-PDF-E01 BandCLAMP(NATURAL)(143.2MM) |
91556-PDF-E01 |
US $1.61 |
||
|
15
|
15
91558-SM4-003 ClipTUBE(BLACK)(135MM) |
91558-SM4-003 |
from US $2 |
||
|
16
|
16
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
17
|
17
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
