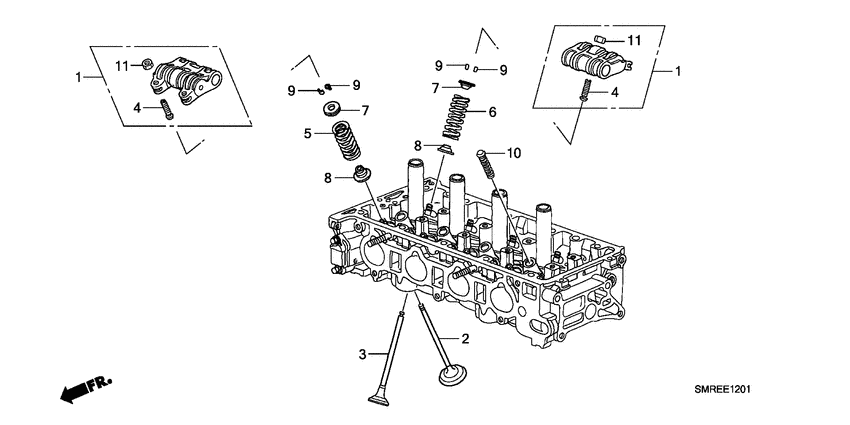

Valve/rocker arm (2.0L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE-R P
- area code
- KE
- right-hand drive
- +
- side curtain srs
- +
- lsd
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14620-PNA-040 Arm assy.ROCKER |
14620-PNA-040 |
from US $179.20 |
||
|
2
|
2
14711-PRB-A01
Valve
|
14711-PRB-A01 |
— | ||
|
3
|
3
14721-PRB-A00 ValveEX. |
14721-PRB-A00 |
from US $27.74 |
||
|
4
|
4
14744-PCX-014 ScrewTAPPET ADJUSTING |
14744-PCX-014 |
from US $2.73 |
||
|
5
|
5
14761-PRB-A02
Spring
|
14761-PRB-A02 |
— | ||
|
6
|
6
14762-PRB-A02
Spring
|
14762-PRB-A02 |
— | ||
|
7
|
7
14765-PRB-A01 RetainerVALVE SPRING |
14765-PRB-A01 |
US $3.01 |
||
|
8
|
8
14775-PCX-000 SeatVALVE SPRING |
14775-PCX-000 |
US $1.89 |
||
|
9
|
9
14781-RGM-A01 CotterVALVE (FUJI VALVE) |
14781-RGM-A01 |
from US $2.89 |
||
|
10
|
10
14820-PNA-003
Motion comp
|
14820-PNA-003 |
— | ||
| replacement | |||||
|
10
|
10
14820-PNA-013 MOTION, |
14820-PNA-013 |
from US $9.92 |
||
|
11
|
11
90206-PT0-004 NutTAPPET ADJUSTING |
90206-PT0-004 |
from US $1.18 |
||
