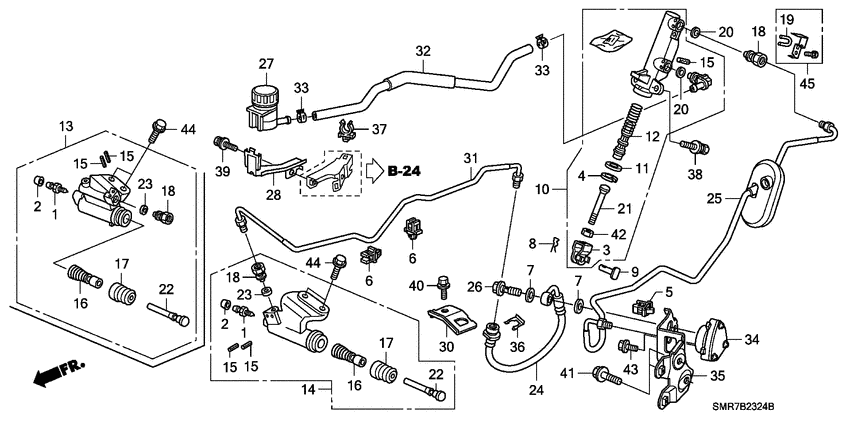

Clutch master cylinder (LH; 2.0L) Diagram Honda CIVIC
- Year
- 2007
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE R
- area code
- KG
- left-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-567-000 ScrewBLEEDER |
43352-567-000 |
US $3.26 |
||
|
2
|
2
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
3
|
3
46151-SA5-003 Yoke comp.NISSIN |
46151-SA5-003 |
US $18.24 |
||
|
4
|
4
46182-500-013 Circlip |
46182-500-013 |
from US $2.07 |
||
|
5
|
5
46391-SDA-A01 Clip gBRAKE PIPE |
46391-SDA-A01 |
US $2.34 |
||
|
6
|
6
46391-S5A-J01 ClipBRAKE PIPE |
46391-S5A-J01 |
US $2.28 |
||
|
7
|
7
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
8
|
8
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $1.85 |
||
|
9
|
9
46912-S84-A00 PinCLUTCH PEDAL |
46912-S84-A00 |
from US $2.31 |
||
|
10
|
10
46920-SMG-X92 Cylinder assy.CLUTCH MASTER |
46920-SMG-X92 |
US $151.04 |
||
| replacement | |||||
|
10
|
10
46920SMGX95
MC ASSYCLUTCH
|
46920SMGX95 |
— | ||
|
11
|
11
46921-S5A-003 PlateSTOPPER |
46921-S5A-003 |
US $3.78 |
||
|
12
|
12
46926-S5A-013
Piston comp
|
46926-S5A-013 |
— | ||
|
14
|
14
46930-S7C-E02 Cylinder assy.CLUTCH SLAVE |
46930-S7C-E02 |
US $84.52 |
||
|
15
|
15
46931-S5A-003 PinSPRING |
46931-S5A-003 |
US $2.31 |
||
|
16
|
16
46932-S5A-003 PistonSLAVE CYLINDER |
46932-S5A-003 |
US $23.04 |
||
|
17
|
17
46937-SS1-003
Boot
|
46937-SS1-003 |
— | ||
|
18
|
18
46941-S5A-003 ConnectorCLUTCH MASTER CYLINDER |
46941-S5A-003 |
US $10.78 |
||
|
19
|
19
46942-S5A-003 PinSNAP |
46942-S5A-003 |
US $2.44 |
||
|
20
|
20
46943-S5A-003 SealRING |
46943-S5A-003 |
US $2.15 |
||
|
21
|
21
46947-SMG-X01
Rod
|
46947-SMG-X01 |
— | ||
|
22
|
22
46948-S5A-003 RodPUSH |
46948-S5A-003 |
US $7.56 |
||
|
23
|
23
46949-S5A-003 SealRING |
46949-S5A-003 |
US $2.15 |
||
|
24
|
24
46961-SMT-E01 HoseCLUTCH |
46961-SMT-E01 |
US $41.86 |
||
|
25
|
25
46962-SMT-G01 Pipe assy. aCLUTCH |
46962-SMT-G01 |
US $8.40 |
||
|
26
|
26
46963-SD4-020 BoltCLUTCH OIL |
46963-SD4-020 |
US $3.85 |
||
|
27
|
27
46965-S5A-013
Tank assy.
|
46965-S5A-013 |
— | ||
|
28
|
28
46966-SMG-G41 HolderTANK |
46966-SMG-G41 |
US $14 |
||
|
30
|
30
46968-S7C-E01 Bracket bCLUTCH PIPE |
46968-S7C-E01 |
US $6.69 |
||
|
31
|
31
46970-SMT-T01 Pipe comp. bCLUTCH |
46970-SMT-T01 |
US $13.57 |
||
|
32
|
32
46971-SMG-G42
Tube
|
46971-SMG-G42 |
— | ||
|
33
|
33
46972-S6F-E01 ClampTUBE (D12) |
46972-S6F-E01 |
US $2.17 |
||
|
34
|
34
46985-SMG-E41 Damper compCLUTCH |
46985-SMG-E41 |
US $50.18 |
||
|
35
|
35
46997-SMT-E02 Bracket comp.DAMPER |
46997-SMT-E02 |
US $32.26 |
||
|
36
|
36
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
37
|
37
91597-S5A-931 ClipDRAIN TUBE |
91597-S5A-931 |
US $1.19 |
||
|
38
|
38
93401-080-200-8 Bolt-washer8X20 |
93401-080-200-8 |
from US $0.67 |
||
|
39
|
39
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
40
|
40
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
41
|
41
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
|
42
|
42
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
42
|
42
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
43
|
43
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
44
|
44
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
|
45
|
45
06469-SMG-G01
Stopper set
|
06469-SMG-G01 |
— | ||
