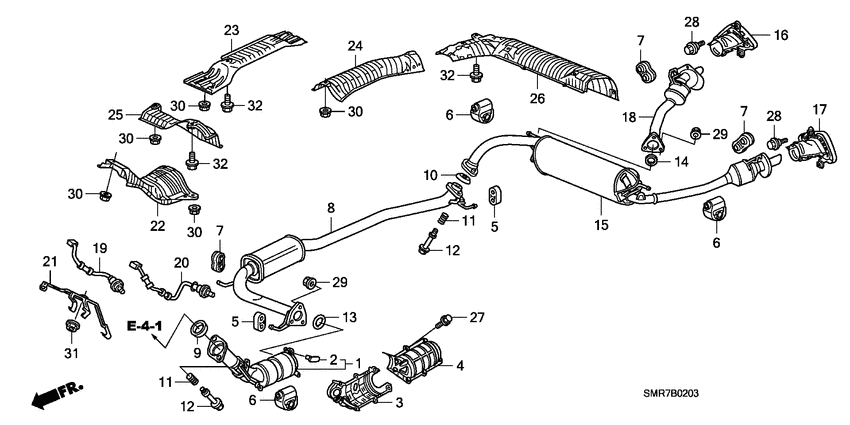

Exhaust pipe/silencer (2.0L) Diagram Honda CIVIC
- Year
- 2007
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE R
- area code
- KG
- left-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18160-RSP-E00 Converter comp. |
18160-RSP-E00 |
US $1,518.08 |
||
|
2
|
2
18176-P08-003 BoltCONVERTER |
18176-P08-003 |
US $7 |
||
|
3
|
3
18181-RSP-E00 Cover comp.LOWER |
18181-RSP-E00 |
US $46.72 |
||
|
4
|
4
18182-RSP-E00 Cover comp.UPPER |
18182-RSP-E00 |
US $46.72 |
||
|
5
|
5
18215-SMG-E01 RubberEX. MOUNTING |
18215-SMG-E01 |
US $5.88 |
||
|
6
|
6
18215-SMG-E11 RubberEX. MOUNTING (YAMASHITA) |
18215-SMG-E11 |
from US $9.44 |
||
|
6
|
6
18215-SMG-E12 RubberEX. MOUNTING(TRI) |
18215-SMG-E12 |
US $9.24 |
||
|
7
|
7
18215-SMG-E21 RubberEX. MOUNTING |
18215-SMG-E21 |
US $5.88 |
||
|
8
|
8
18220-SMT-E02
Pipe b
|
18220-SMT-E02 |
— | ||
|
9
|
9
18229-SMT-E01 GasketEX. FLEXIBLE |
18229-SMT-E01 |
US $30.08 |
||
|
10
|
10
18229-S6D-003 GasketEX. FLEXIBLE |
18229-S6D-003 |
US $29.47 |
||
|
11
|
11
18230-SV4-000 SpringFLEXIBLE JOINT |
18230-SV4-000 |
from US $3.55 |
||
|
12
|
12
18231-SR3-A22 Bolt bFLEXIBLE JOINT |
18231-SR3-A22 |
from US $9.36 |
||
|
13
|
13
18302-SP0-003 GasketEX. PIPE |
18302-SP0-003 |
from US $5.77 |
||
|
14
|
14
18303-SM4-020 GasketSILENCER |
18303-SM4-020 |
from US $5.32 |
||
|
15
|
15
18307-SMT-E01
Silencer comp
|
18307-SMT-E01 |
— | ||
|
16
|
16
18310-SMR-E01 FinisherR. EX. PIPE |
18310-SMR-E01 |
US $183.04 |
||
|
17
|
17
18320-SMR-E01 FinisherL. EX. PIPE |
18320-SMR-E01 |
US $183.04 |
||
|
18
|
18
18330-SMT-E01
Tail comp.
|
18330-SMT-E01 |
— | ||
|
19
|
19
36531-RSP-E01
Sensor
|
36531-RSP-E01 |
— | ||
|
20
|
20
36532-RSP-E01 SensorOXYGEN |
36532-RSP-E01 |
US $236.80 |
||
|
21
|
21
36535-RSP-E00
Stay
|
36535-RSP-E00 |
— | ||
|
22
|
22
74601-SMT-E00 Plate aFLOOR HEAT BAFFLE |
74601-SMT-E00 |
US $72.32 |
||
|
23
|
23
74603-SMG-E00 Plate cFLOOR HEAT BAFFLE |
74603-SMG-E00 |
US $142.08 |
||
|
24
|
24
74604-SMT-E00 Plate dFLOOR HEAT BAFFLE |
74604-SMT-E00 |
US $80.64 |
||
|
25
|
25
74620-SMJ-E00 Plate comp. bFLOOR HEAT BAFFLE |
74620-SMJ-E00 |
US $138.24 |
||
|
26
|
26
74655-SMG-E00 PlateSILENCER BAFFLE |
74655-SMG-E00 |
US $170.24 |
||
|
27
|
27
90023-PK1-000
Bolt
|
90023-PK1-000 |
— | ||
| replacement | |||||
|
27
|
27
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
28
|
28
90171-SMG-010 BoltFLANGE, 5X10 |
90171-SMG-010 |
US $1.33 |
||
|
29
|
29
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
30
|
30
90301-SV7-000 NutPAINT CUTTING, 6MM |
90301-SV7-000 |
US $1.61 |
||
|
31
|
31
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
32
|
32
93404-060-120-5
Bolt-washer
|
93404-060-120-5 |
— | ||
| replacement | |||||
|
32
|
32
93404-060-140-5 Bolt-washer6X14 |
93404-060-140-5 |
from US $0.52 |
||
