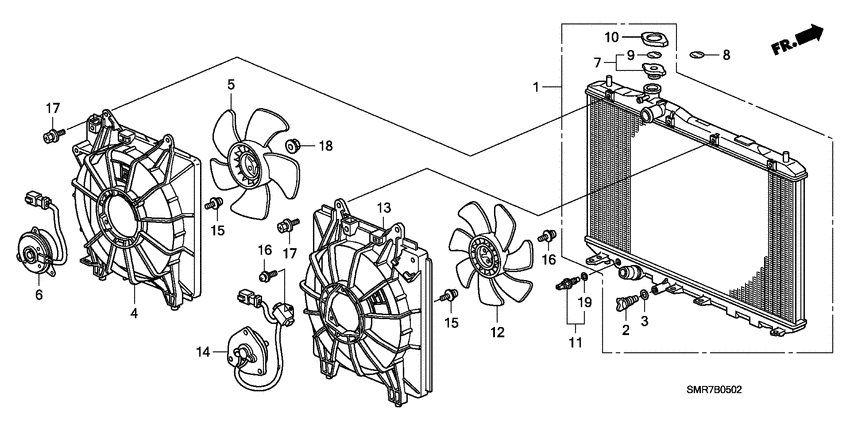

Radiator (2.0L) Diagram Honda CIVIC
- Year
- 2007
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.0 TYPE R P
- area code
- KG
- left-hand drive
- +
- auto cruise
- +
- navigation
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-RSP-G01
Radiator comp.
|
19010-RSP-G01 |
— | ||
|
2
|
2
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
from US $1.85 |
||
|
4
|
4
19015-RSP-G01
Shroud comp.
|
19015-RSP-G01 |
— | ||
|
5
|
5
19020-RRA-A01 FanCOOLING |
19020-RRA-A01 |
US $33.02 |
||
|
6
|
6
38616-RBB-003 MotorCOOLING FAN |
38616-RBB-003 |
US $212.48 |
||
|
7
|
7
19045-RAA-003 Cap comp.RADIATOR (DENSO) |
19045-RAA-003 |
from US $17.50 |
||
|
8
|
8
19046-PT5-P00 SealCAP (PORTUGAL) |
19046-PT5-P00 |
US $1.47 |
||
|
9
|
9
19046-RAA-A00 LabelRADIATOR CAP |
19046-RAA-A00 |
from US $1.47 |
||
|
10
|
10
19047-PLC-003 CoverRADIATOR CAP (DENSO) |
19047-PLC-003 |
US $5.86 |
||
|
11
|
11
37870-RTA-005 Sensor assyWATER TEMP (DENSO) |
37870-RTA-005 |
from US $31.82 |
||
|
12
|
12
38611-PNA-003 FanCOOLING(DENSO)(NATURAL) |
38611-PNA-003 |
US $33.92 |
||
|
13
|
13
38615-RSP-G01
Sub shroud comp.
|
38615-RSP-G01 |
— | ||
|
14
|
14
38616-RZP-G01 MotorCOOLING FAN |
38616-RZP-G01 |
US $261.80 |
||
|
15
|
15
90041-P3G-003 Screw-washer5X11 |
90041-P3G-003 |
US $1.41 |
||
|
16
|
16
90041-P5A-003 Screw-washer4X11 |
90041-P5A-003 |
US $1.33 |
||
|
17
|
17
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
18
|
18
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
19
|
19
91307-RTA-005 O-ringDENSO |
91307-RTA-005 |
US $1.88 |
