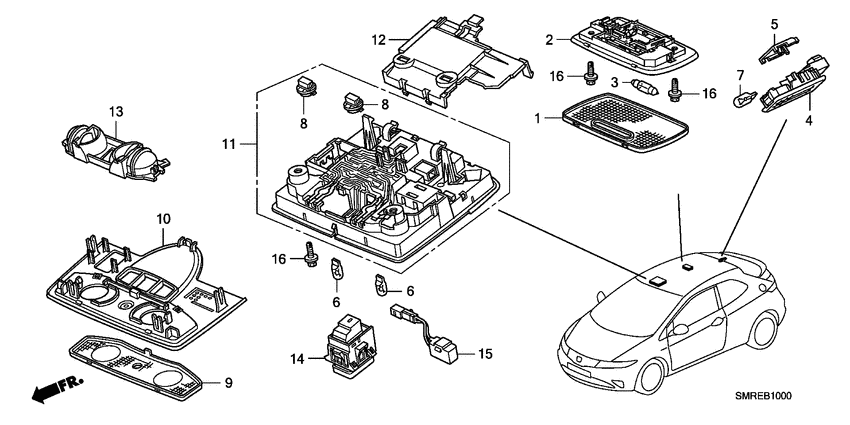

Interior light Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.2 TYPE-S P
- area code
- KE
- right-hand drive
- +
- navigation
- +
- side curtain srs
- +
- glass roof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34251-S5A-003 Lens |
34251-S5A-003 |
from US $6.02 |
||
|
2
|
2
34252-S5A-003ZA Base comp. *nh220l* |
34252-S5A-003ZA |
US $30.82 |
||
|
3
|
3
34253-671-003
Bulb
|
34253-671-003 |
— | ||
| replacement | |||||
|
3
|
3
04110-SWA-305 BULB T10X318W |
04110-SWA-305 |
from US $3.09 |
||
|
4
|
4
34261-S6D-E01 Lens comp |
34261-S6D-E01 |
US $16.90 |
||
|
5
|
5
34262-S6D-E01 Cover |
34262-S6D-E01 |
US $3.08 |
||
|
6
|
6
34295-SMG-E01
Bulb
|
34295-SMG-E01 |
— | ||
|
7
|
7
34295-S6D-E01 Bulb12V 5W |
34295-S6D-E01 |
US $2.80 |
||
|
8
|
8
34402-SMG-E01
Socket
|
34402-SMG-E01 |
— | ||
|
9
|
9
34403-SMG-E01 Lens |
34403-SMG-E01 |
US $29.18 |
||
|
10
|
10
34405-SMG-E02ZA
Bezel *nh220l*
|
34405-SMG-E02ZA |
— | ||
|
11
|
11
34412-SMG-E02ZA
Housing comp. *nh220l*
|
34412-SMG-E02ZA |
— | ||
|
12
|
12
34413-SMG-E01 Cover |
34413-SMG-E01 |
US $35.58 |
||
|
13
|
13
34415-SMG-E01 Reflector |
34415-SMG-E01 |
US $37.12 |
||
|
14
|
14
35830-SMG-E01ZA
Switch assy
|
35830-SMG-E01ZA |
— | ||
|
15
|
15
39182-SMG-E03
Microphone assy
|
39182-SMG-E03 |
— | ||
|
16
|
16
90148-S6A-013 BoltEARTH, 5X14 |
90148-S6A-013 |
US $1.19 |
||
