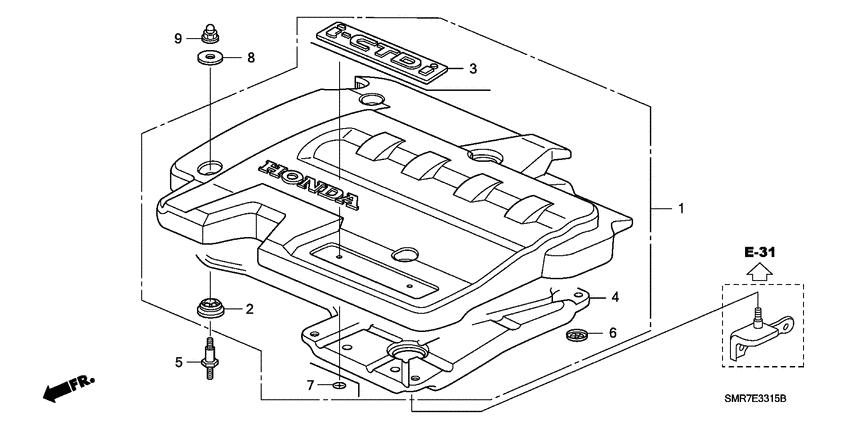

Engine cover (DIESEL) Diagram Honda CIVIC
- Year
- 2007
- Model code
- CIVIC
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.2 TYPE S
- area code
- KE
- right-hand drive
- +
- auto cruise
- +
- navigation
- +
- side curtain srs
- +
- glass roof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32121-RSR-E01 Cover comp.ENGINE |
32121-RSR-E01 |
US $230.40 |
||
|
2
|
2
32122-RBD-E00 Grommet |
32122-RBD-E00 |
US $3.50 |
||
|
3
|
3
32123-RBD-E00 EmblemENGINE COVER |
32123-RBD-E00 |
US $17.92 |
||
|
4
|
4
32124-RSR-E01 Insulator |
32124-RSR-E01 |
US $41.98 |
||
|
5
|
5
90051-RBD-E01 Bolt aENGINE COVER STUD |
90051-RBD-E01 |
US $2.03 |
||
|
6
|
6
90301-RBD-E00 NutPUSH, 5MM |
90301-RBD-E00 |
US $1.33 |
||
|
7
|
7
90301-ST0-003 push nut, 3mm |
90301-ST0-003 |
from US $1.18 |
||
|
8
|
8
90491-RBD-E00
Washer
|
90491-RBD-E00 |
— | ||
|
9
|
9
94021-060-700-S NutCAP, 6MM |
94021-060-700-S |
from US $0.59 |
