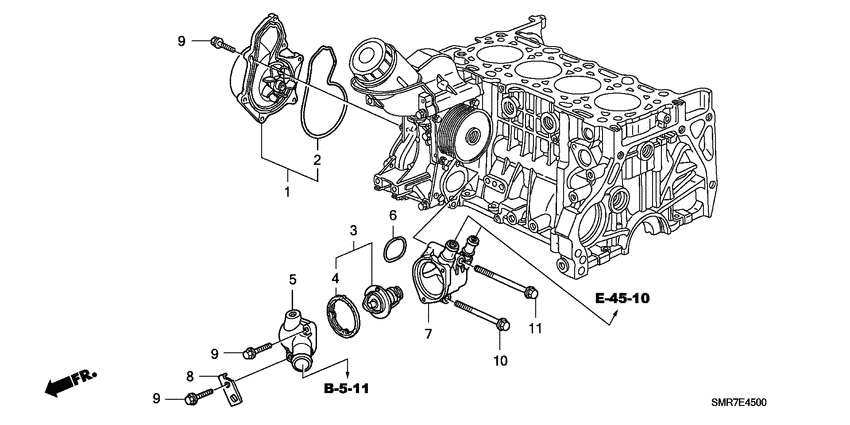

Water pump (DIESEL) Diagram Honda CIVIC
- Year
- 2007
- Model code
- CIVIC
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 3
- grade
- 2.2 TYPE S
- area code
- KE
- right-hand drive
- +
- auto cruise
- +
- navigation
- +
- side curtain srs
- +
- glass roof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-RSR-E02 Pump compWATER |
19200-RSR-E02 |
US $163.84 |
||
|
2
|
2
19222-RBD-E01 PackingWATER PUMP |
19222-RBD-E01 |
US $8.12 |
||
|
3
|
3
19301-RBD-305
Thermostat assy.
|
19301-RBD-305 |
— | ||
|
4
|
4
19305-RBD-E00 RubberTHERMOSTAT MOUNTING |
19305-RBD-E00 |
US $3.08 |
||
|
5
|
5
19311-R06-E00
Cover
|
19311-R06-E00 |
— | ||
|
6
|
6
19313-RBD-E00 PackingTHERMOSTAT CASE |
19313-RBD-E00 |
US $3.22 |
||
|
7
|
7
19320-R06-E00
Case comp.
|
19320-R06-E00 |
— | ||
|
8
|
8
32744-RBD-E01
Stay d
|
32744-RBD-E01 |
— | ||
|
9
|
9
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
10
|
10
95701-080-700-8 BoltFLANGE, 8X70 |
95701-080-700-8 |
from US $0.98 |
||
|
11
|
11
95701-080-850-8 BoltFLANGE, 8X85 |
95701-080-850-8 |
from US $1.33 |
