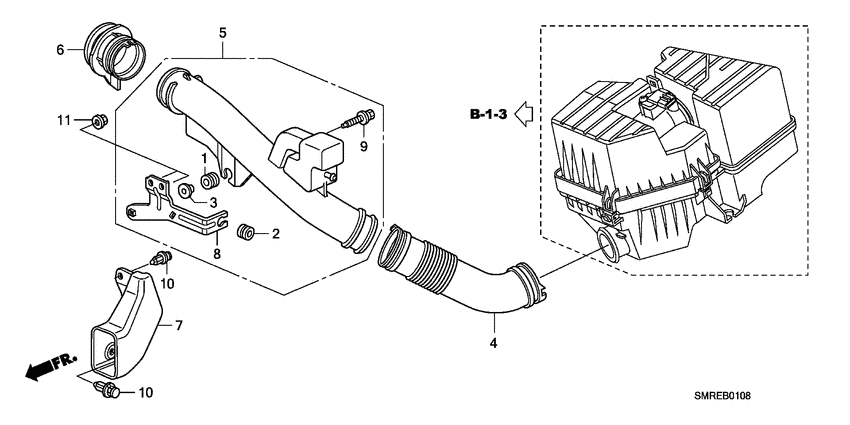

Air intake tube (1.4L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- IMT
- Number of doors
- 3
- grade
- 1.4 TYPE-S P
- area code
- KG
- left-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17212-PE2-000 Rubber aAIR CLEANER CASE MOUNTING |
17212-PE2-000 |
US $2.38 |
||
|
2
|
2
17213-PD1-000 RubberAIR CLEANER CASE MOUNTING |
17213-PD1-000 |
US $2.80 |
||
|
3
|
3
17216-PE2-003 CollarAIR CLEANER(TOYO ROKI) |
17216-PE2-003 |
from US $2.10 |
||
|
4
|
4
17251-RSJ-E00
Tube a
|
17251-RSJ-E00 |
— | ||
|
5
|
5
17252-RSJ-E00
Tube assy. b
|
17252-RSJ-E00 |
— | ||
|
6
|
6
17253-RSJ-E00
Tube c
|
17253-RSJ-E00 |
— | ||
|
7
|
7
17255-RSH-E00 DuctCOOLING |
17255-RSH-E00 |
US $26.88 |
||
|
8
|
8
17255-RSJ-E00
Stay comp
|
17255-RSJ-E00 |
— | ||
|
9
|
9
90001-P7J-000 BoltSPECIAL, 6X25 |
90001-P7J-000 |
US $1.19 |
||
|
10
|
10
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
11
|
11
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
