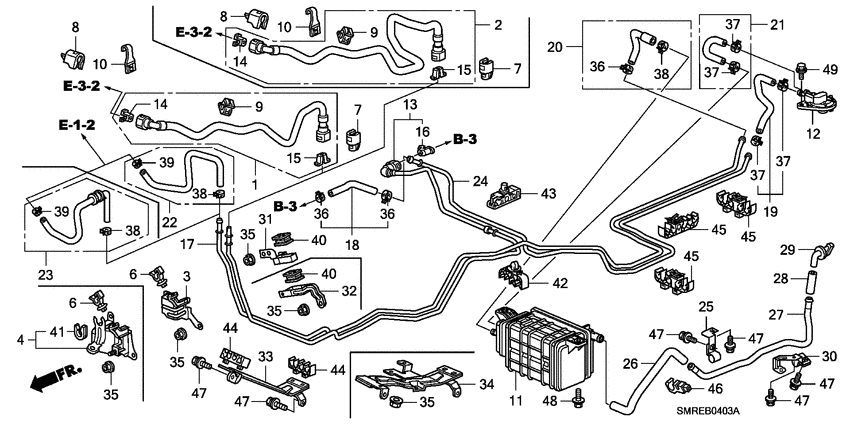

Fuel pipe (1.4L) Diagram Honda CIVIC
- Year
- 2010
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- IMT
- Number of doors
- 3
- grade
- 1.4 TYPE-S P
- area code
- KG
- left-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
16720-RSJ-G01 Hose comp.FUEL FEED |
16720-RSJ-G01 |
US $56.70 |
||
|
4
|
4
16723-RSH-G00 Bracket comp.FUEL FEED HOSE |
16723-RSH-G00 |
US $21.63 |
||
|
6
|
6
16725-RAC-003 ClampFUEL HOSE (NATURAL) |
16725-RAC-003 |
US $1.61 |
||
|
7
|
7
16725-RBA-J00 Cover aFUEL CONNECTOR |
16725-RBA-J00 |
US $2.03 |
||
|
8
|
8
16726-RBA-J00 Cover bFUEL CONNECTOR |
16726-RBA-J00 |
US $1.61 |
||
|
9
|
9
16727-PWA-004 ClampFUEL HOSE |
16727-PWA-004 |
US $1.61 |
||
|
10
|
10
16727-RB0-000 ClampFUEL FEED PIPE |
16727-RB0-000 |
US $1.61 |
||
|
11
|
11
17300-SNA-013 Canister assy |
17300-SNA-013 |
US $102.68 |
||
| replacement | |||||
|
11
|
11
17300-SNA-023 Canister assy |
17300-SNA-023 |
from US $112.95 |
||
|
12
|
12
17371-SLJ-003 ValveTWO WAY |
17371-SLJ-003 |
US $40.72 |
||
|
13
|
13
17700-SMG-G01
Pipe comp
|
17700-SMG-G01 |
— | ||
|
14
|
14
17711-ST0-004 RetainerWHITE) (SANOH |
17711-ST0-004 |
from US $3.40 |
||
|
15
|
15
17711-S0X-004 RetainerWHITE) (SANOH |
17711-S0X-004 |
US $3.50 |
||
|
16
|
16
17711-S84-004 RetainerWHITE)(SANOH |
17711-S84-004 |
US $4.07 |
||
|
17
|
17
17720-SMG-G01
Pipe
|
17720-SMG-G01 |
— | ||
|
18
|
18
17721-SMG-E02
Tube assy. a
|
17721-SMG-E02 |
— | ||
|
19
|
19
17722-SMG-E02
Tube assy. b
|
17722-SMG-E02 |
— | ||
|
20
|
20
17724-SMG-E01
Tube assy. d
|
17724-SMG-E01 |
— | ||
|
21
|
21
17724-SNA-000
Tube
|
17724-SNA-000 |
— | ||
|
23
|
23
17725-SMG-G61
Hose assy
|
17725-SMG-G61 |
— | ||
|
24
|
24
17730-SMG-E01 PipeFUEL VENT |
17730-SMG-E01 |
US $38.27 |
||
|
25
|
25
17741-SMG-E00
Stay a
|
17741-SMG-E00 |
— | ||
|
26
|
26
17742-SMG-E02
Tube a
|
17742-SMG-E02 |
— | ||
|
27
|
27
17745-SMG-E01 PipeCANISTER DRAIN |
17745-SMG-E01 |
US $46.85 |
||
|
28
|
28
17747-SMG-E02
Tube b
|
17747-SMG-E02 |
— | ||
|
29
|
29
17748-SMG-E01 JointCANISTER DRAIN |
17748-SMG-E01 |
US $5.88 |
||
|
30
|
30
17749-SMG-E00
Stay c
|
17749-SMG-E00 |
— | ||
|
32
|
32
17761-SMG-G00
Stay a
|
17761-SMG-G00 |
— | ||
|
34
|
34
17762-SMG-G00
Stay b
|
17762-SMG-G00 |
— | ||
|
35
|
35
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
36
|
36
91404-SDC-000 ClampTUBE (D10) |
91404-SDC-000 |
US $1.33 |
||
|
37
|
37
91404-TA0-G01 ClampFUEL TUBE (D10) |
91404-TA0-G01 |
US $1.33 |
||
|
38
|
38
91405-SDA-000 ClampTUBE(D10.5) |
91405-SDA-000 |
from US $1.19 |
||
|
39
|
39
91407-SDB-000 ClampTUBE (D12.5) |
91407-SDB-000 |
US $1.19 |
||
|
40
|
40
91590-SMG-E00 Rubber aFUEL PIPE INSULATOR |
91590-SMG-E00 |
US $4.62 |
||
|
41
|
41
91593-ST7-931 ClipFUEL HOSE |
91593-ST7-931 |
US $2.31 |
||
|
42
|
42
91594-SMG-E01 Clamp dFUEL PIPE |
91594-SMG-E01 |
US $13.44 |
||
|
43
|
43
91595-SMG-E01 Clamp assyFUEL PIPE |
91595-SMG-E01 |
US $3.57 |
||
|
44
|
44
91595-S7A-931 Clamp aFUEL PIPE |
91595-S7A-931 |
US $4.35 |
||
|
45
|
45
91596-SMG-E01 Clamp fFUEL PIPE |
91596-SMG-E01 |
US $4.48 |
||
|
46
|
46
91599-SMG-E01 ClipDRAIN TUBE |
91599-SMG-E01 |
US $4.13 |
||
|
47
|
47
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
48
|
48
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
49
|
49
93891-060-120-8 Screw-washer6X12 |
93891-060-120-8 |
from US $0.52 |
||
