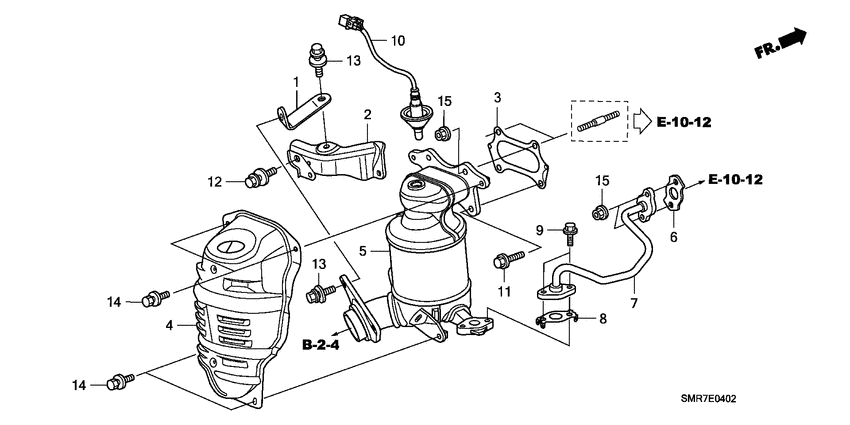

Converter (1.4L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 1.4 BASE
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11941-RSJ-E00
Stay comp
|
11941-RSJ-E00 |
— | ||
|
2
|
2
11943-RSJ-E00 Bracket comp.CONVERTER |
11943-RSJ-E00 |
US $20.86 |
||
|
3
|
3
18115-RB0-004 GasketCONVERTER (NIPPON LEAKLESS) |
18115-RB0-004 |
US $12.18 |
||
|
3
|
3
18115-RB0-007 GasketCONVERTER (NOK) |
18115-RB0-007 |
US $13.44 |
||
|
4
|
4
18120-RB0-G00 CoverCONVERTER |
18120-RB0-G00 |
US $36.35 |
||
|
5
|
5
18190-RSJ-E00
Converter comp.
|
18190-RSJ-E00 |
— | ||
|
6
|
6
18716-RB0-G01 Gasket aEGR PIPE |
18716-RB0-G01 |
US $5.46 |
||
|
7
|
7
18717-RB0-G00 Pipe compEGR |
18717-RB0-G00 |
US $59.01 |
||
|
8
|
8
18719-RNA-A01 Gasket bEGR PIPE |
18719-RNA-A01 |
US $5.21 |
||
|
9
|
9
18720-RNA-A00 BoltFLANGE, 8X20 |
18720-RNA-A00 |
US $2.21 |
||
|
10
|
10
36531-RB0-003 SensorAIR FUEL RATIO |
36531-RB0-003 |
US $281.60 |
||
|
11
|
11
90001-RB0-000 BoltFLANGE, 8X22 |
90001-RB0-000 |
US $1.61 |
||
|
12
|
12
90004-PLC-000 Bolt-washer10X25 |
90004-PLC-000 |
US $2.19 |
||
|
13
|
13
90004-RB0-J60 Bolt-washer8X22 |
90004-RB0-J60 |
US $2.31 |
||
|
14
|
14
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
15
|
15
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
