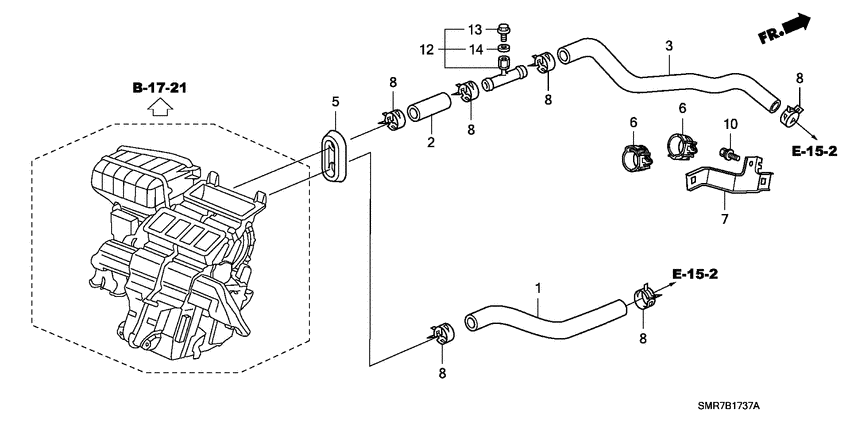

Water hose (RH; 1.4L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- 6MT
- Number of doors
- 3
- grade
- 1.4 BASE
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79721-SMG-E51
Hose
|
79721-SMG-E51 |
— | ||
|
2
|
2
79722-SNG-A00 Hose bWATER IN. |
79722-SNG-A00 |
US $4.20 |
||
|
3
|
3
79726-SMG-E51
Hose b
|
79726-SMG-E51 |
— | ||
|
5
|
5
79731-SMG-E00 GrommetHEATER PIPE |
79731-SMG-E00 |
US $4.62 |
||
|
6
|
6
79746-TF0-003 ClipHEATER HOSE |
79746-TF0-003 |
US $3.70 |
||
|
7
|
7
79754-SMG-E50
Stay
|
79754-SMG-E50 |
— | ||
|
8
|
8
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
8
|
8
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
10
|
10
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
12
|
12
79730-SMG-E51 Pipe assy.WATER |
79730-SMG-E51 |
US $30.46 |
||
|
13
|
13
90024-PR7-A00 BoltSEALING, 8MM |
90024-PR7-A00 |
US $1.89 |
||
|
14
|
14
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
